General Information
Manufacturer
Velleman
Part Number

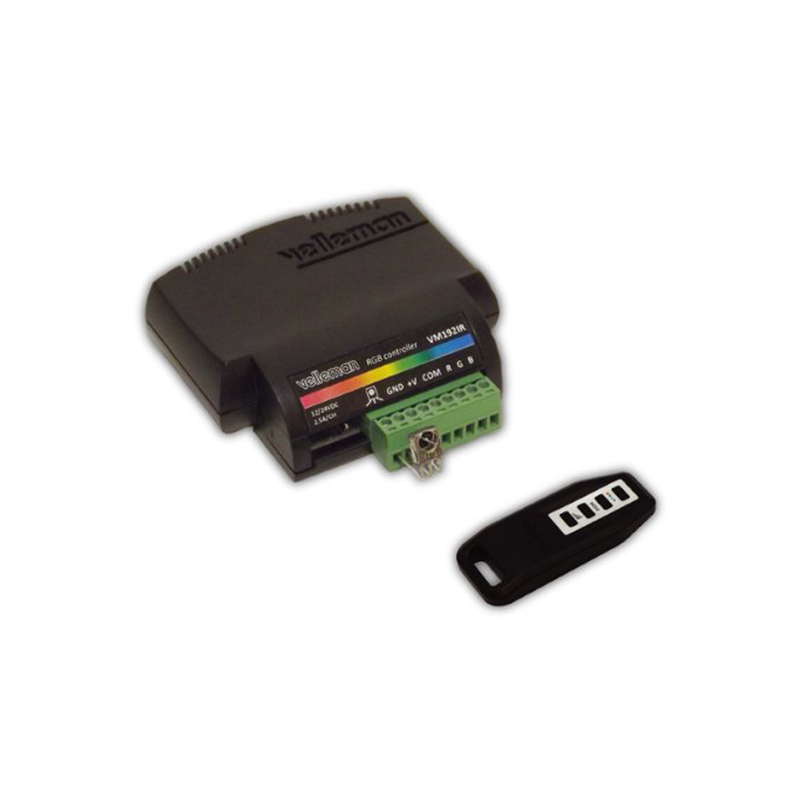

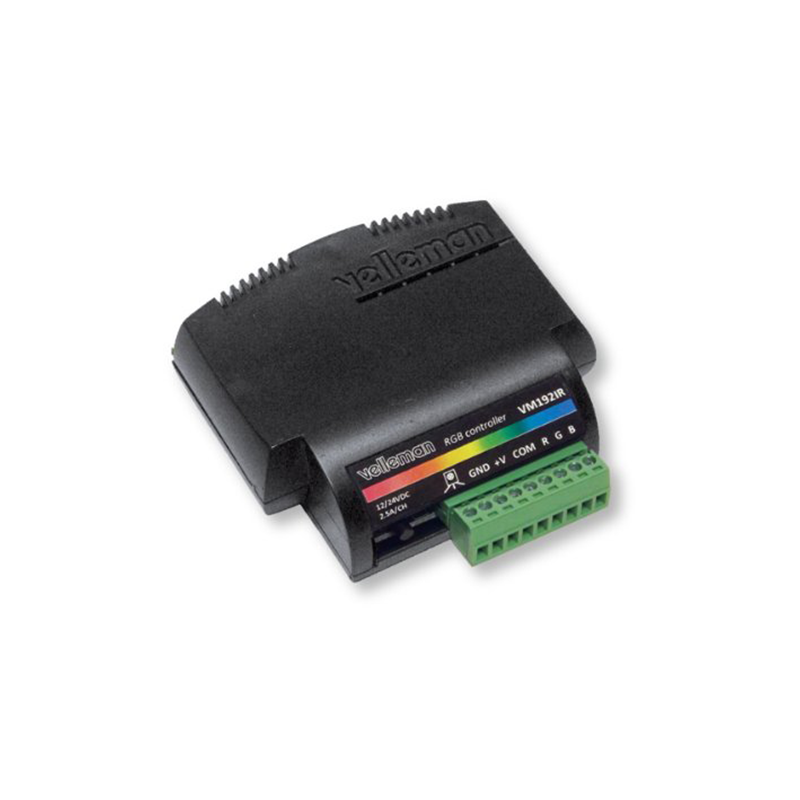

VM192IR
Product Type
DIY Electronic Project
Miscellaneous
Features

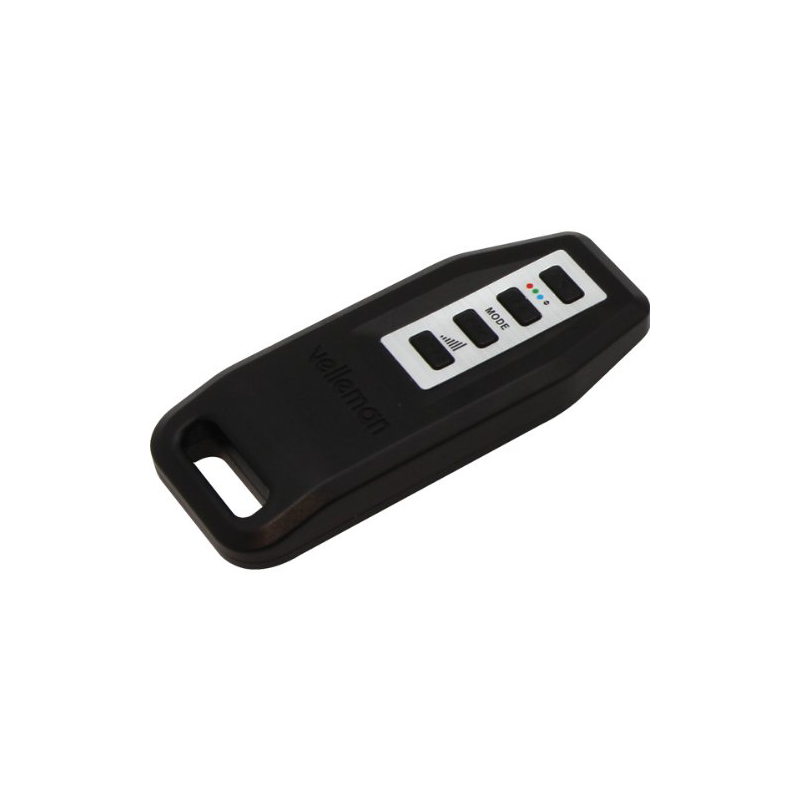

Includes one 4-channel infrared remote
IR module can be placed up to 10 m away
Color, intensity and mode are retained and will be restored after a power failure
Speed determined by jumper setting
Can also be used as a single channel led dimmer
Smooth manual scrolling through red-orange-yellow-green-blue-Indigo-violet with up/down buttons
Fix a manually selected colour
IR module can be placed up to 10 m away
Color, intensity and mode are retained and will be restored after a power failure
Speed determined by jumper setting
Can also be used as a single channel led dimmer
Smooth manual scrolling through red-orange-yellow-green-blue-Indigo-violet with up/down buttons
Fix a manually selected colour
Specifications
Power supply: 12..24 VDC
Current: 2.5 A/channel max. (30 W / 12 V, 60 W / 24 V max.)
PWM frequency /resolution: 245 Hz, 10-bit
Intensity levels: 32
colour loop time (R->G->B->R): 50 s, 1 min 40 s, 2 min 30 s, or 3 min 20 s
Max. ambient temp: 30 °C / 86 °F
Remote range: up to 10 m (fresh battery, line of sight, no interference)
Remote power supply: V23GA or GP23GAC 12 V battery (included)
Dimensions:
Controller: 80 x 70 x 23 mm / 3.15 x 2.75 x 0.9"
Remote: 88 x 37 x 13 mm / 3.46 x 1.45 x 0.5"
Current: 2.5 A/channel max. (30 W / 12 V, 60 W / 24 V max.)
PWM frequency /resolution: 245 Hz, 10-bit
Intensity levels: 32
colour loop time (R->G->B->R): 50 s, 1 min 40 s, 2 min 30 s, or 3 min 20 s
Max. ambient temp: 30 °C / 86 °F
Remote range: up to 10 m (fresh battery, line of sight, no interference)
Remote power supply: V23GA or GP23GAC 12 V battery (included)
Dimensions:
Controller: 80 x 70 x 23 mm / 3.15 x 2.75 x 0.9"
Remote: 88 x 37 x 13 mm / 3.46 x 1.45 x 0.5"
Item Weight
3 ounces
