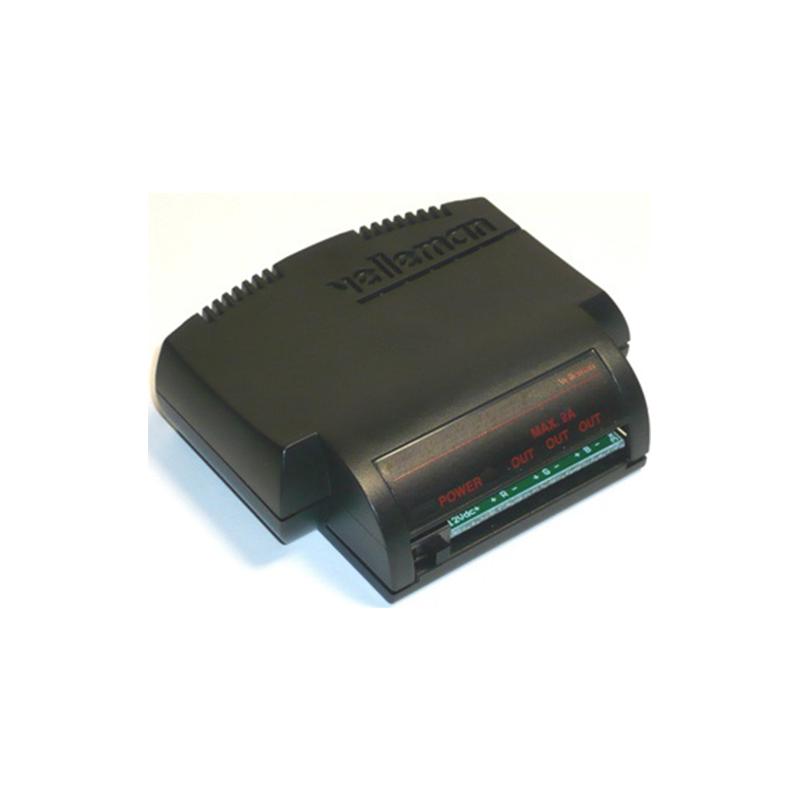

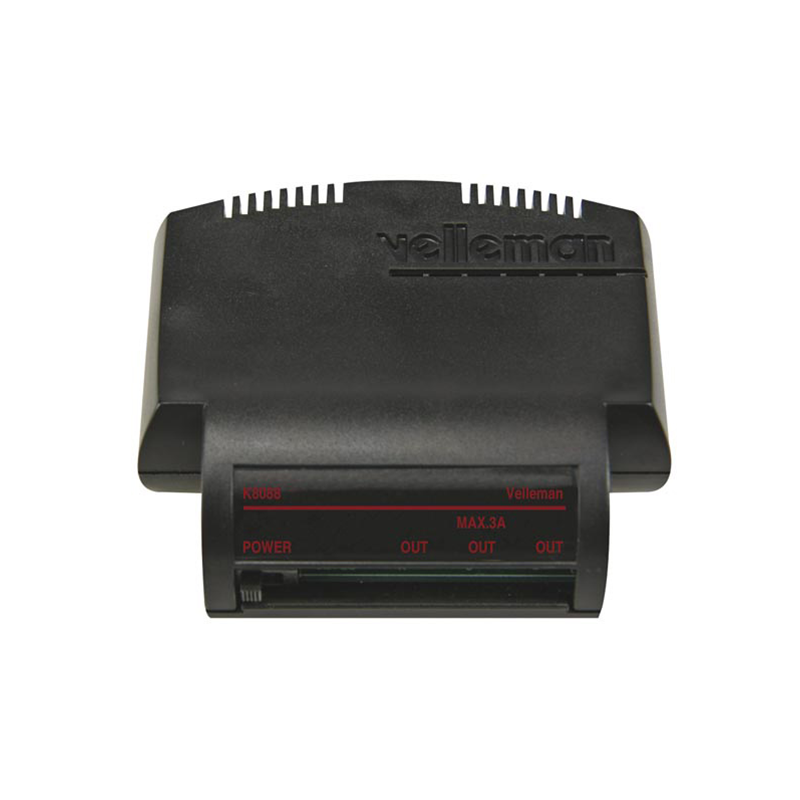

General Information
Manufacturer
Velleman
Part Number
VM146
Product Type
DIY Electronic Project
Miscellaneous
Features
Suited for both incandescent bulbs and LEDs
Up-down level adjustment for each output
Hard transition effects: running light, strobe, color loops, etc.
Smooth fade effects: color change, flame effect, random colors, slow off etc.
Wide-range effect speed adjustment
Hi-power MOSFET outputs
Memory for last selected effect & speed
Sasy up/down effect selection
Suited for common anode RGB strips
Up-down level adjustment for each output
Hard transition effects: running light, strobe, color loops, etc.
Smooth fade effects: color change, flame effect, random colors, slow off etc.
Wide-range effect speed adjustment
Hi-power MOSFET outputs
Memory for last selected effect & speed
Sasy up/down effect selection
Suited for common anode RGB strips
Specifications
256 intensity levels/ch.
Current limit possible (on-board resistor needed)
LED PWM freq: 82Hz
Power supply: 10-15VDC/9A max. OR 24VDC regulated /3A max. (e.g. PSIN06024)*
RGB output: 3 x 3A
Dimensions: ± 3.15 x 2.75 x 0.9"
Current limit possible (on-board resistor needed)
LED PWM freq: 82Hz
Power supply: 10-15VDC/9A max. OR 24VDC regulated /3A max. (e.g. PSIN06024)*
RGB output: 3 x 3A
Dimensions: ± 3.15 x 2.75 x 0.9"
Item Weight
3 ounces
