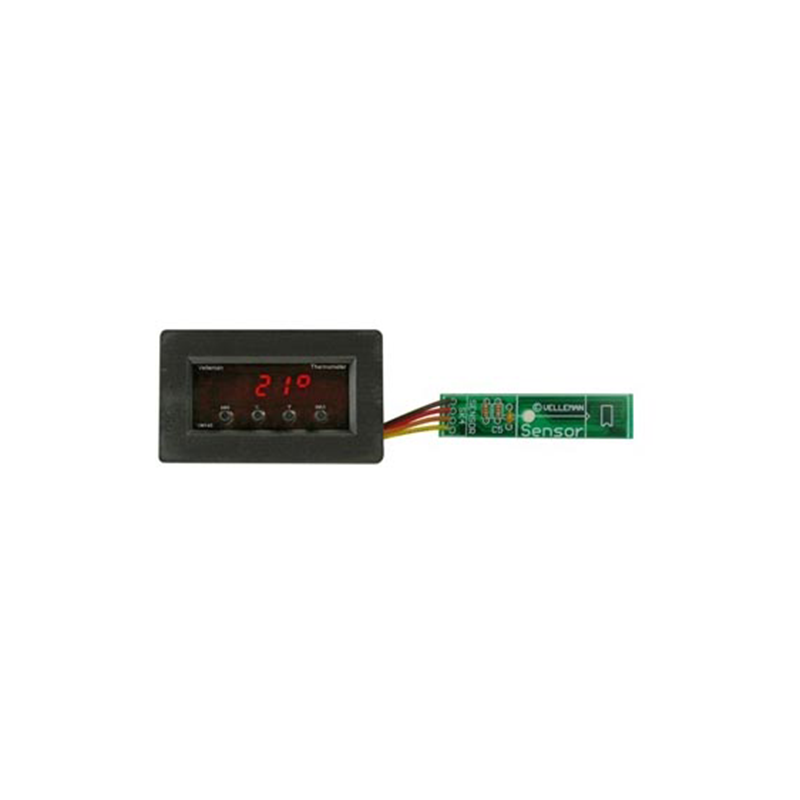

General Information
Manufacturer
Velleman
Part Number
VM145
Product Type
DIY Electronic Project
Miscellaneous
Features
Bon-volatile memory for minimum and maximum temperature

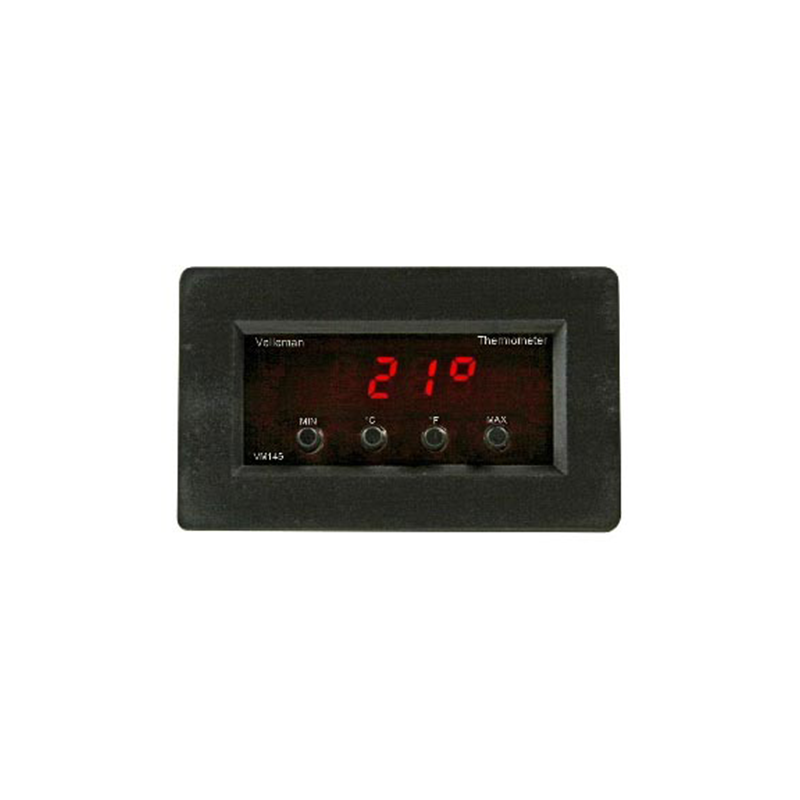

Bright red LED read-out
Pre-calibrated sensor
Digital communication between sensor and display unit avoids measurement errors
Bright red LED read-out
Pre-calibrated sensor
Digital communication between sensor and display unit avoids measurement errors
Specifications
wide power supply range:
9 ... 24VDC
7 ... 17VAC
Power and temperature sensor connection via board-to-wire connector (20cm supplied)
Temperature range: -30°C (-22°F) to + 120°C (248°F)
accuracy
Room temperature range: ± 1°C (2°F)
Full range: ± 2°C ( +/- 4°F )
Distance between sensor and display unit: tested up to 10m (33ft)
Current consumption: 40mA maximum
Dimensions:
Panel module: 2.6 x 1.6"
Cut-out: 2.1 x 1.5"
Sensor: 2 x 0.4 x 0.11"
Mounting depth: 1.65"
9 ... 24VDC
7 ... 17VAC
Power and temperature sensor connection via board-to-wire connector (20cm supplied)
Temperature range: -30°C (-22°F) to + 120°C (248°F)
accuracy
Room temperature range: ± 1°C (2°F)
Full range: ± 2°C ( +/- 4°F )
Distance between sensor and display unit: tested up to 10m (33ft)
Current consumption: 40mA maximum
Dimensions:
Panel module: 2.6 x 1.6"
Cut-out: 2.1 x 1.5"
Sensor: 2 x 0.4 x 0.11"
Mounting depth: 1.65"
Item Weight
3 ounces
