General Information
Manufacturer
Velleman
Part Number
VM124
Product Type
DIY Electronic Project
Miscellaneous
Features

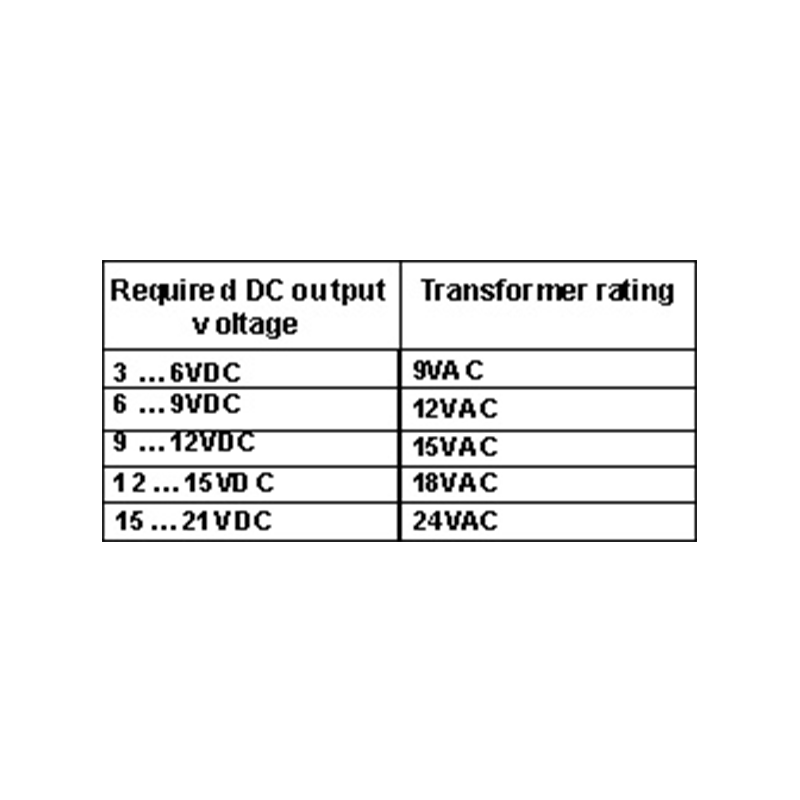

Just add a suitable transformer (see table)
9Vac: 109010C
12Vac: 112012C
24Vac: 212024C
Great to power your projects and save on batteries
Use as adjustable power supply for experiments
Control DC motors, low-voltage light bulbs…
9Vac: 109010C
12Vac: 112012C
24Vac: 212024C
Great to power your projects and save on batteries
Use as adjustable power supply for experiments
Control DC motors, low-voltage light bulbs…
Specifications
Min. output voltage: 1.2V
Max. output current: 1A
Max. output voltage: 30VDC
Very low ripple (80 dB rejection)
Short-circuit, thermal and overload protection
Max. input voltage: 24VAC or 35VDC
Max. dissipation: 15W (with heat sink)
Dimensions: 52 x 30 x 35mm / 20,48 x 1,18 x 1,37"
Max. output current: 1A
Max. output voltage: 30VDC
Very low ripple (80 dB rejection)
Short-circuit, thermal and overload protection
Max. input voltage: 24VAC or 35VDC
Max. dissipation: 15W (with heat sink)
Dimensions: 52 x 30 x 35mm / 20,48 x 1,18 x 1,37"
Item Weight
3 ounces
