General Information
Manufacturer
Velleman
Part Number
VM110N
Product Type
DIY Electronic Project
Miscellaneous
Features
Minimum system:
Pentium class CPU
USB1.1 or higher connection
Windows XP or higher
CD ROM player and mouse

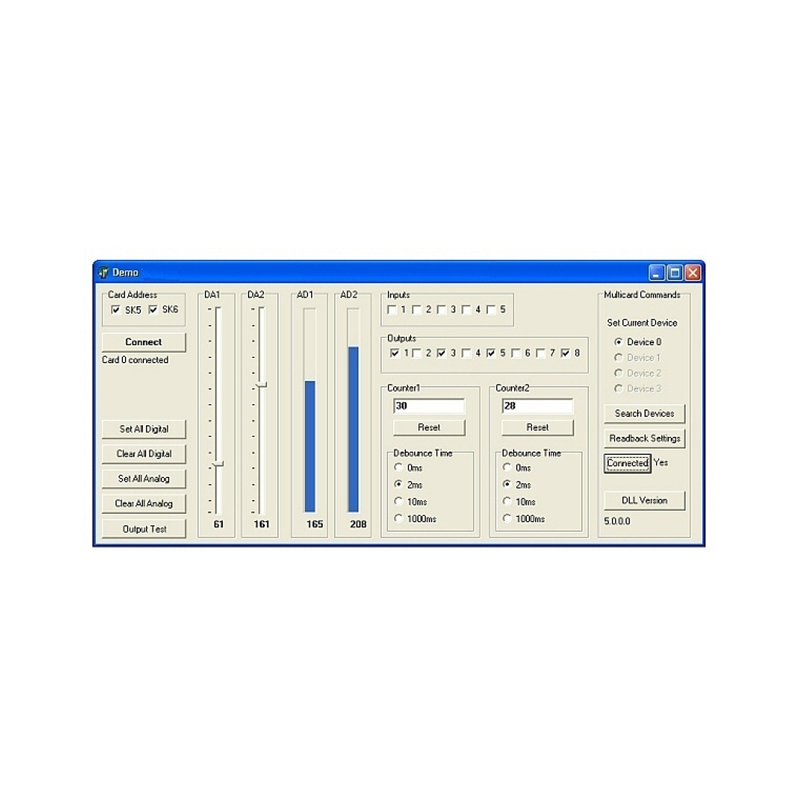

DIAGNOSTIC / TEST SOFTWARE:
Separate output / input test
Clear all / set all function
Counter function on inputs 1 and 2 with adjustable debounce (max 2KHz depends on total I/O load)
Analog output set sliders
Analog input bar-graph indication
Pentium class CPU
USB1.1 or higher connection
Windows XP or higher
CD ROM player and mouse
DIAGNOSTIC / TEST SOFTWARE:
Separate output / input test
Clear all / set all function
Counter function on inputs 1 and 2 with adjustable debounce (max 2KHz depends on total I/O load)
Analog output set sliders
Analog input bar-graph indication

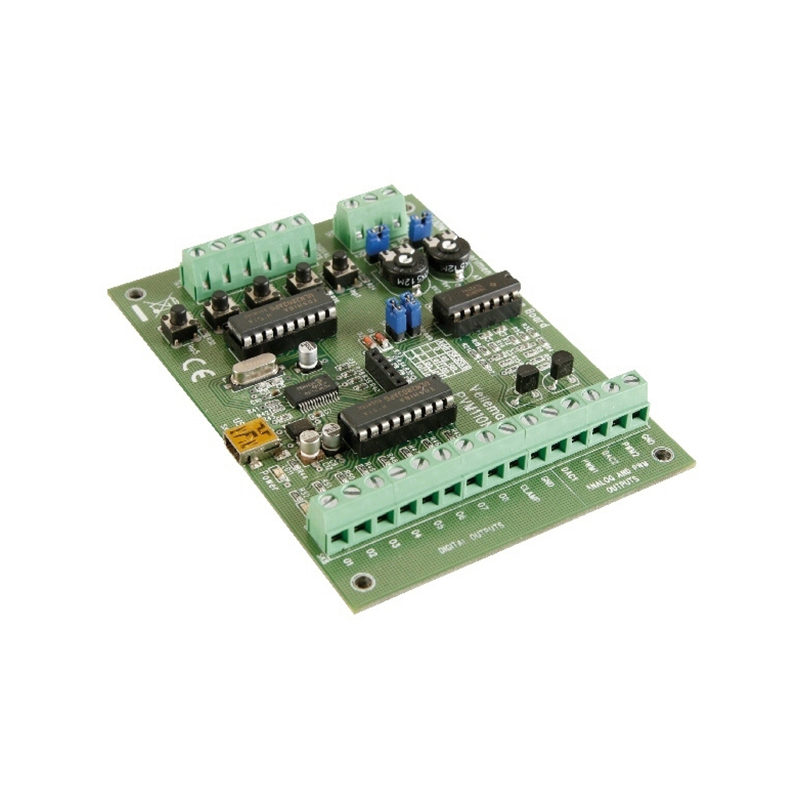

Specifications
5 digital inputs (0= ground, 1= open) (on board test buttons provided)
2 analog inputs with attenuation and amplification option (internal test +5V provided)
8 digital open collector output switches (max 50V/100mA) (on-board LED indication)
2 analog outputs:
0 to 5V, output resistance 1K5
PWM 0 to 100% open collector outputs max 100mA / 40V (on-board LED indication)
General conversion time: 2ms per command
Power supply: through USB approx. 70mA
Dimensions: 4.3 x 3.2"
2 analog inputs with attenuation and amplification option (internal test +5V provided)
8 digital open collector output switches (max 50V/100mA) (on-board LED indication)
2 analog outputs:
0 to 5V, output resistance 1K5
PWM 0 to 100% open collector outputs max 100mA / 40V (on-board LED indication)
General conversion time: 2ms per command
Power supply: through USB approx. 70mA
Dimensions: 4.3 x 3.2"
Item Weight
5 ounces
