General Information
Manufacturer
Syba
Part Number
SD-ADA50016
Product Type
Cable
Technical Information
Cable Type
SATA Adapter
Connectors
SATA II to IDE ATA133
Color
Black
Features
Unique Bi-directional SATA <–> IDE Converter
Chipset: Satalink Spif223a
Supports 3.5-inch SATA and IDE (ATA) Hard Drive
Supports 5.25-inch SATA and IDE (ATA) Optical Drives
LED Indicators: Power-On and HDD-Activity
Ultra Low Power Consumption

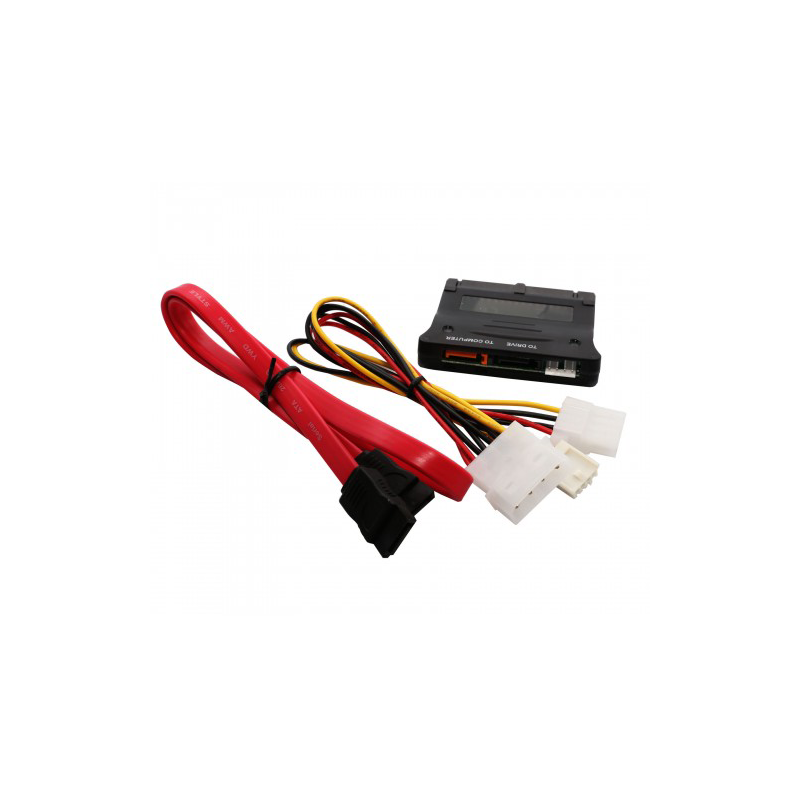

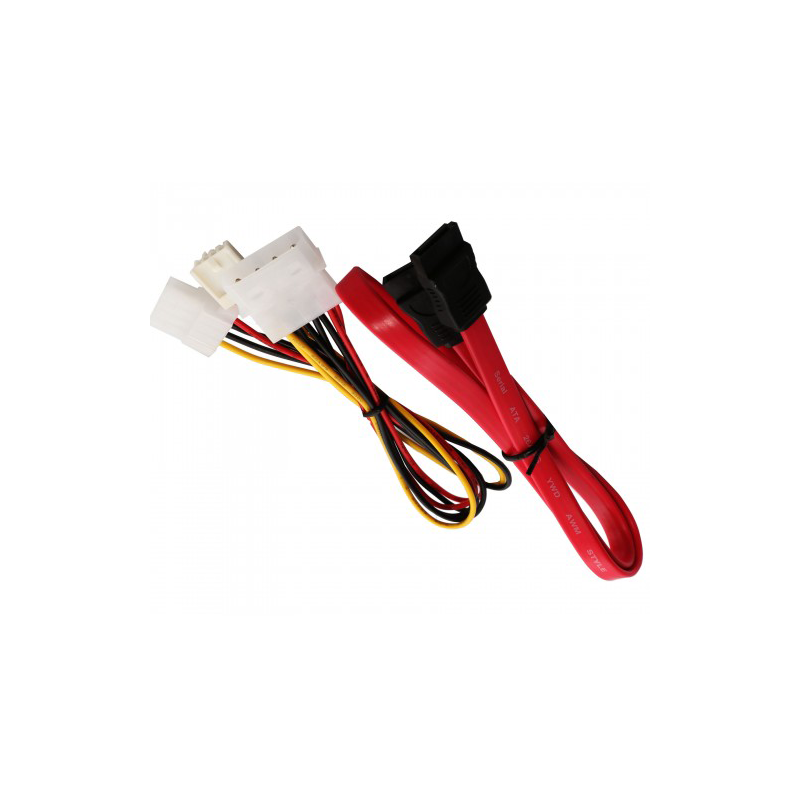

Connectors: IDE (ATA) SATA to Computer (Yellow) SATA to Drive (Black) 4-pin FDD Power Connector
Two Independent Ultra ATA Channels with 128/256 Bytes Buffer Per Channel
Driverless Installation
Serial ATA Interface: Complies with SATA 1.0a Specification Supports SATA Generation 1 with Transfer Rate up to 1.5Gbps (150MB/s) Supports Spread Spectrum in Receiver Supports SATA Power Saving Mode (Partial and Slumber)
IDE (ATA) Interface: Complies with ATA Specification Complies with Ultra ATA 133 with Transfer Rate Up To 133MB/s Supports PIO Mode o, 1, 2, 3, 4, 5, 6 Supports MDMA Mode 0, 1, 2 Supports Ultra DMA Mode 0, 1, 2, 3, 4, 5, 6 Supports Master/Slave/Cable Select Mode by Configuration Switches
40 Pin IDE interface
Chipset: Satalink Spif223a
Supports 3.5-inch SATA and IDE (ATA) Hard Drive
Supports 5.25-inch SATA and IDE (ATA) Optical Drives
LED Indicators: Power-On and HDD-Activity
Ultra Low Power Consumption
Connectors: IDE (ATA) SATA to Computer (Yellow) SATA to Drive (Black) 4-pin FDD Power Connector
Two Independent Ultra ATA Channels with 128/256 Bytes Buffer Per Channel
Driverless Installation
Serial ATA Interface: Complies with SATA 1.0a Specification Supports SATA Generation 1 with Transfer Rate up to 1.5Gbps (150MB/s) Supports Spread Spectrum in Receiver Supports SATA Power Saving Mode (Partial and Slumber)
IDE (ATA) Interface: Complies with ATA Specification Complies with Ultra ATA 133 with Transfer Rate Up To 133MB/s Supports PIO Mode o, 1, 2, 3, 4, 5, 6 Supports MDMA Mode 0, 1, 2 Supports Ultra DMA Mode 0, 1, 2, 3, 4, 5, 6 Supports Master/Slave/Cable Select Mode by Configuration Switches
40 Pin IDE interface
