General Information
Manufacturer
Seeedstudio
Part Number
109990009
Product Type
RF Explorer
Miscellaneous
Features
Pocket size and light weight
Solid aluminum metal case

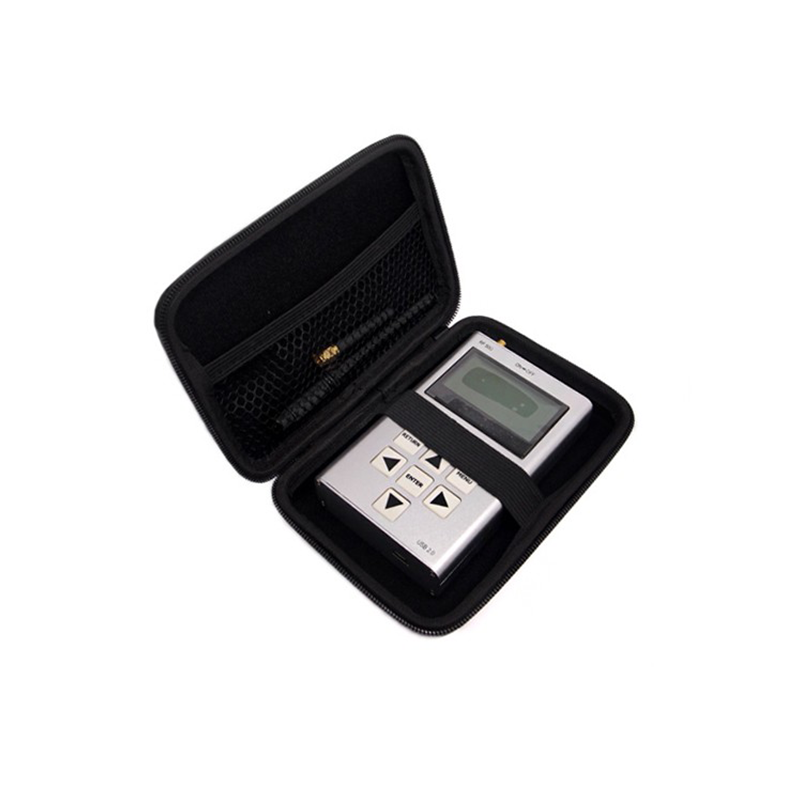

Includes a transport EVA carry case for RF Explorer
Spectrum Analyzer mode with Peak Max and Hold, Normal, Overwrite and Averaging modes
Lifetime free firmware upgrades available, open to community requested features
High capacity Lipo for 16hs+ of continuous run, rechargeable by USB
Windows PC client Open Source
Can be extended with internal Expansion Modules for additional band and functionality
Wide band coverage to all popular RF frequencies, starting at 15MHz and going up to 2.7GHz. This include very interesting frequency areas such as 2m HAM radio, all VHF and UHF, FM radio, GPS, WiFi and WiMax, Bluetooth, etc.
Firmware: RF Explorer 3G Combo is delivered with upgraded firmware v1.09. Note some of the features and operation accuracy will be improved in upcoming lifetime free firmware revisions.
Solid aluminum metal case
Includes a transport EVA carry case for RF Explorer
Spectrum Analyzer mode with Peak Max and Hold, Normal, Overwrite and Averaging modes
Lifetime free firmware upgrades available, open to community requested features
High capacity Lipo for 16hs+ of continuous run, rechargeable by USB
Windows PC client Open Source
Can be extended with internal Expansion Modules for additional band and functionality
Wide band coverage to all popular RF frequencies, starting at 15MHz and going up to 2.7GHz. This include very interesting frequency areas such as 2m HAM radio, all VHF and UHF, FM radio, GPS, WiFi and WiMax, Bluetooth, etc.
Firmware: RF Explorer 3G Combo is delivered with upgraded firmware v1.09. Note some of the features and operation accuracy will be improved in upcoming lifetime free firmware revisions.
Specifications
Battery: Lithium Cells / Batteries contained in equipment UN3481 - PI967
Frequency band: 15-2700 MHz
Frequency span: 112KHz - 600MHz
Graphics LCD: 128x64 pixels, great visibility outdoors
PC Windows client: Supports Windows XP/Vista/Win7 both 32 and 64bits
Backlight: for great indoor visibility
2 standard SMA 50 ohms connector: One for Sub-GHz wideband Nagoya NA-773 telescopic antenna included and another 2.4Ghzone for 15-2700 MHz band with helical antenna included.
Amplitude resolution: 0.5dBm
Dynamic range
Left SMA port (WSUB1G): -115dBm to 0dBm
Right SMA port (WSUB3G): -110dBm to -10dBm
Absolute Max input power
Left SMA port (WSUB1G): +5dBm
Right SMA port (WSUB3G): +30dBm
Average noise level (typical): -110dBm
Frequency stability and accuracy (typical): +-10ppm
Amplitude stability and accuracy (typical): +-6dBm
Frequency resolution: 1Khz
Resolution bandwidth: (RBW) automatic 3Khz to 600Khz
Frequency band: 15-2700 MHz
Frequency span: 112KHz - 600MHz
Graphics LCD: 128x64 pixels, great visibility outdoors
PC Windows client: Supports Windows XP/Vista/Win7 both 32 and 64bits
Backlight: for great indoor visibility
2 standard SMA 50 ohms connector: One for Sub-GHz wideband Nagoya NA-773 telescopic antenna included and another 2.4Ghzone for 15-2700 MHz band with helical antenna included.
Amplitude resolution: 0.5dBm
Dynamic range
Left SMA port (WSUB1G): -115dBm to 0dBm
Right SMA port (WSUB3G): -110dBm to -10dBm
Absolute Max input power
Left SMA port (WSUB1G): +5dBm
Right SMA port (WSUB3G): +30dBm
Average noise level (typical): -110dBm
Frequency stability and accuracy (typical): +-10ppm
Amplitude stability and accuracy (typical): +-6dBm
Frequency resolution: 1Khz
Resolution bandwidth: (RBW) automatic 3Khz to 600Khz
What's in the Box

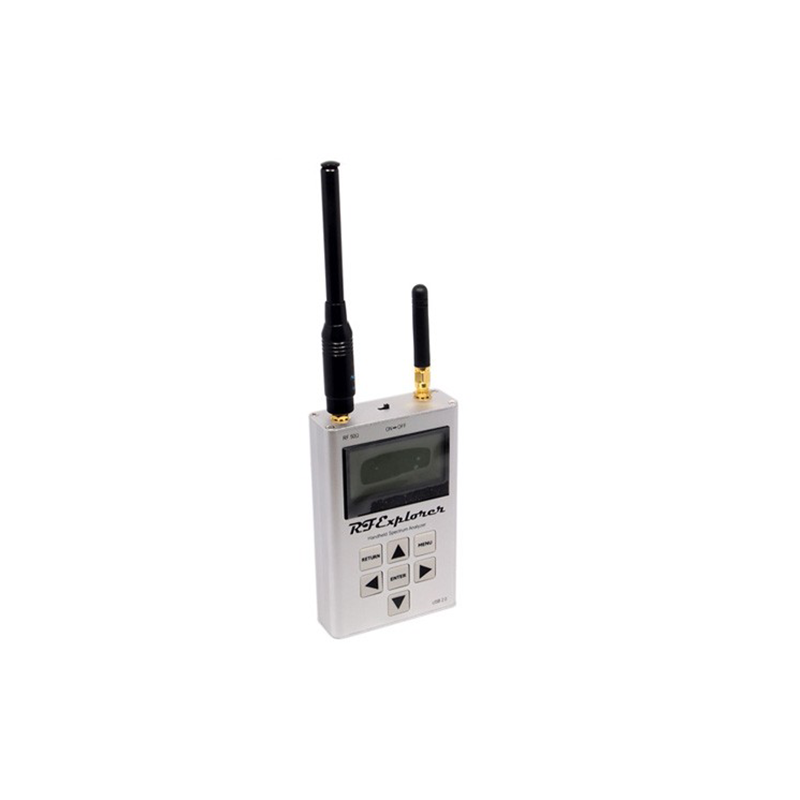

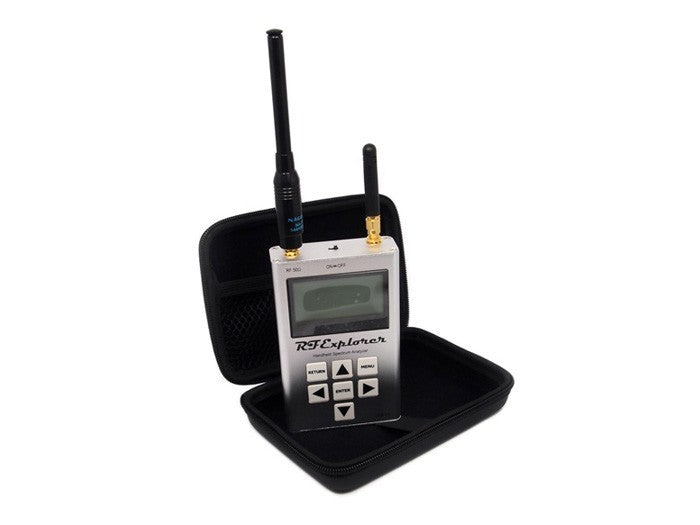

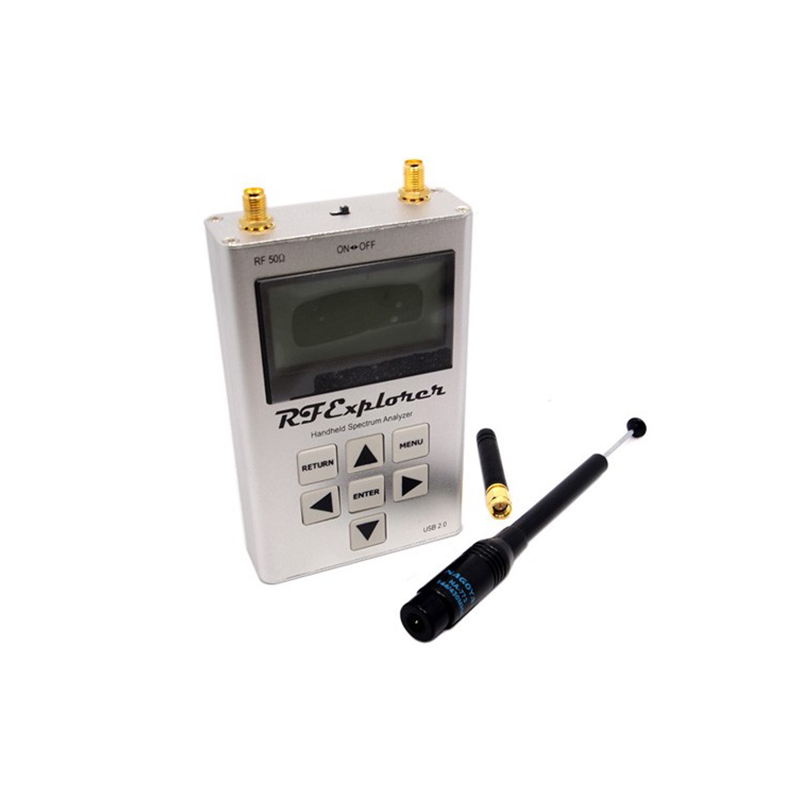

RF Explorer 3G Combo, Nagoya NA-773 wideband telescopic antenna, 2.4GHz band antenna, EVA Case
Item Weight
7 oz
