General Information
Manufacturer
Seeedstudio
Part Number
103030009
Product Type

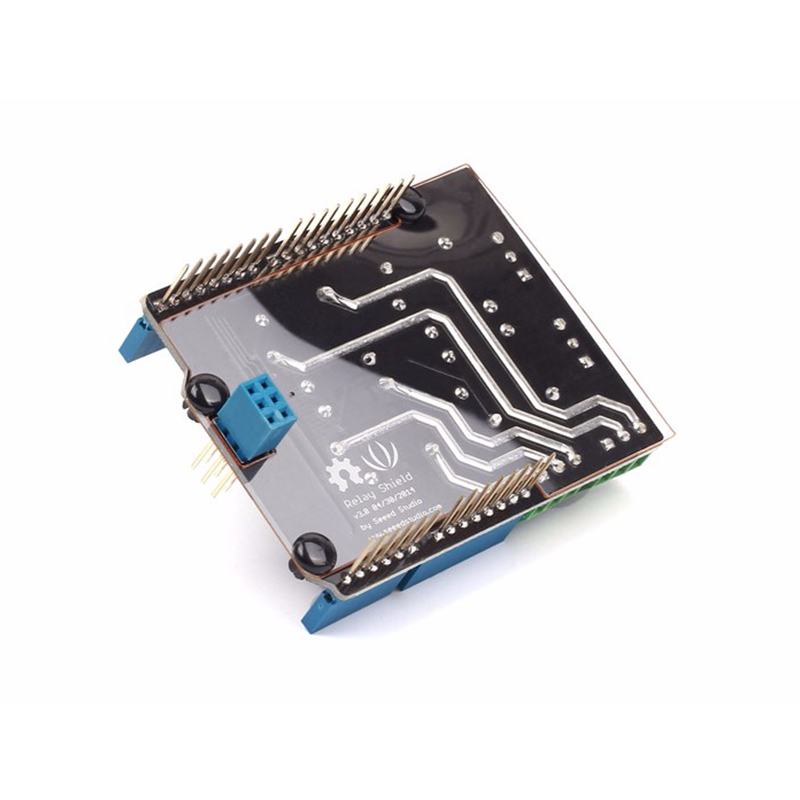

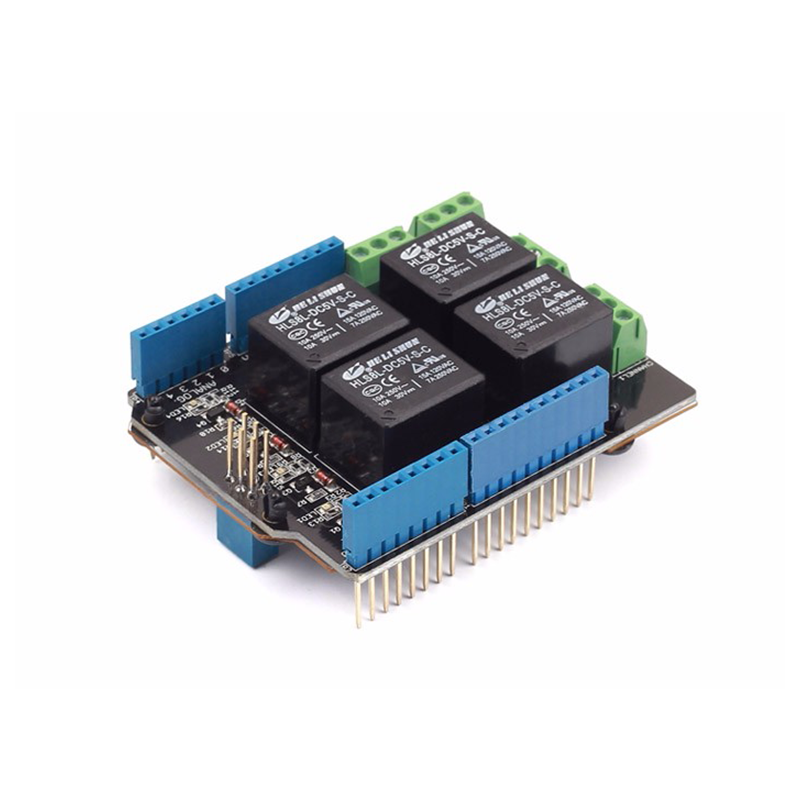

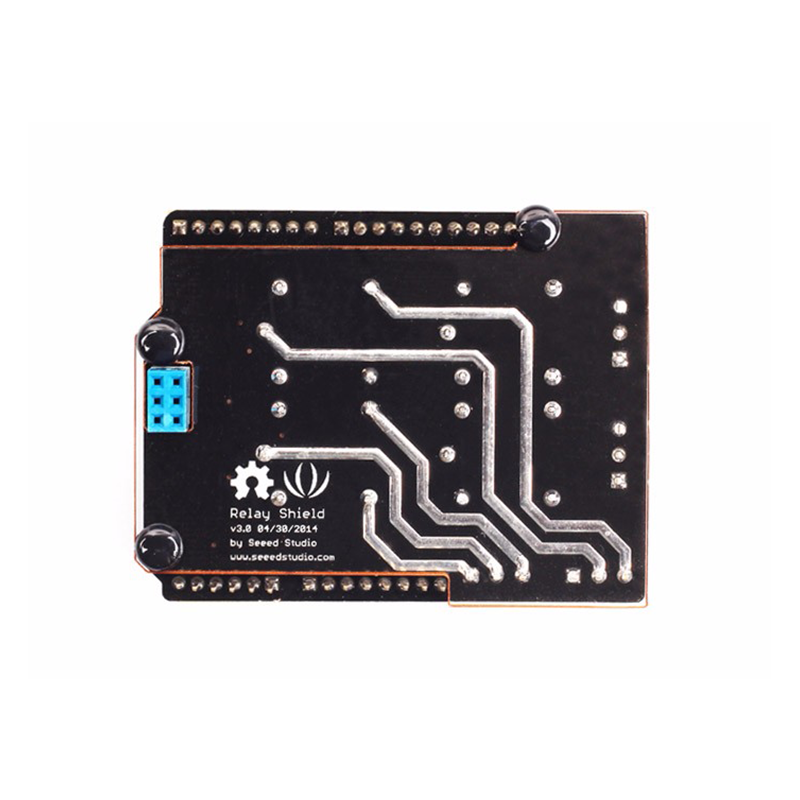

Relay Shield
Miscellaneous
Features
Arduino/Seeeduino Shield compatible

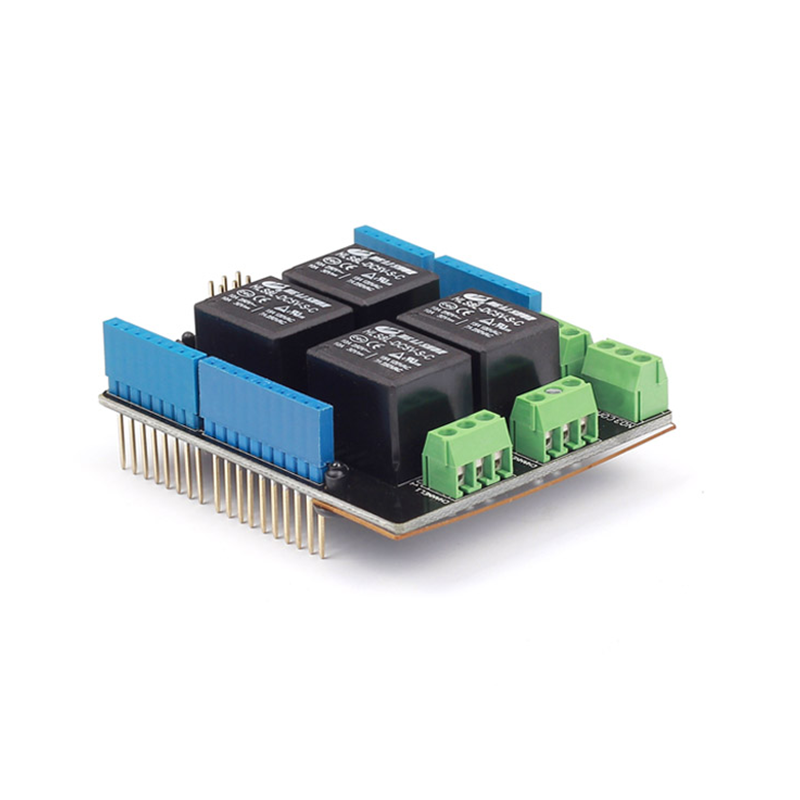

Relay screw terminals

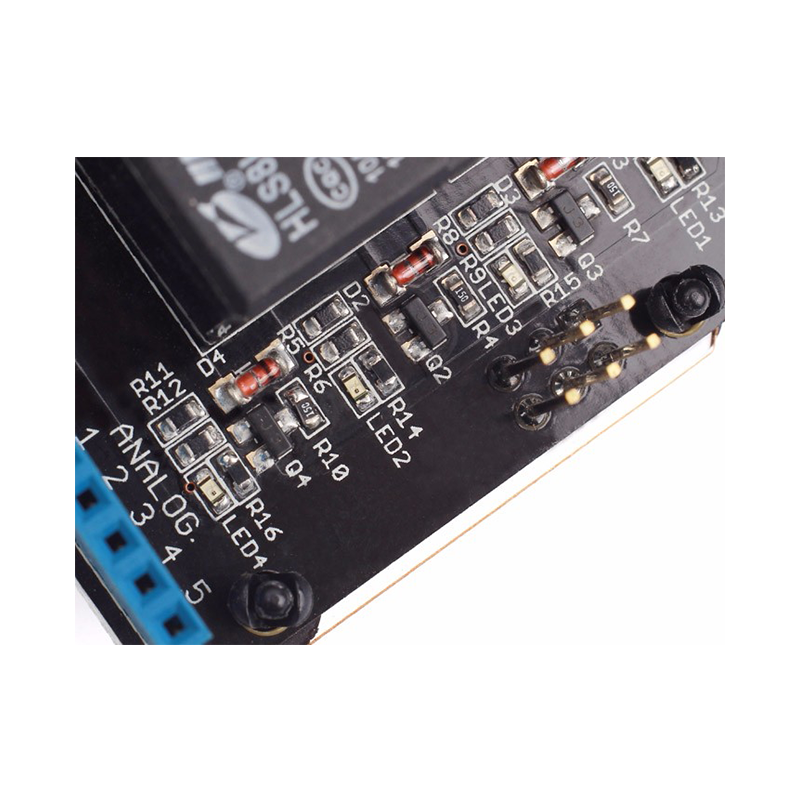

Working status indicators for each relay
High quality relays
Provides NO/NC interfaces

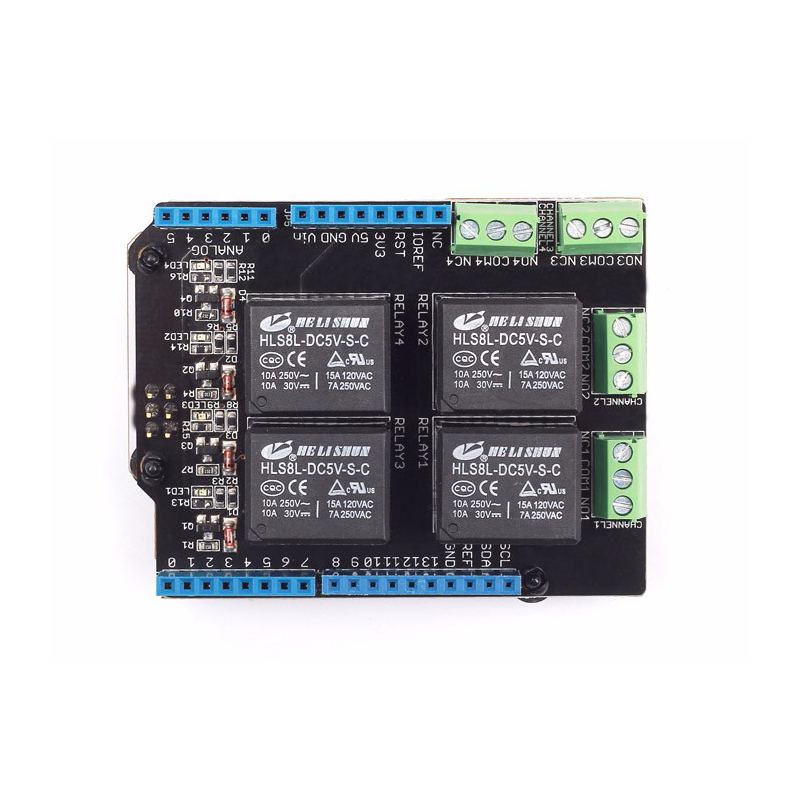

Channel1 Interface
COM1 - Common pin
NC1 - Normally Closed. Will be connected with COM1 when RELAY1 pin is set low and disconnected when RELAY1 is high;
NO1 - Normally Open. Will be connected with COM1 when RELAY 1 pin is set high and disconnected when RELAY1 is low;
4 DIGITAL PINS TO CONTROL 4 RELAYS
RELAY1-RELAY4 pins could be connected directly with Arduino pin number of 7-4, so that four relays could be easily controlled by the Arduino
Relay screw terminals
Working status indicators for each relay
High quality relays
Provides NO/NC interfaces
Channel1 Interface
COM1 - Common pin
NC1 - Normally Closed. Will be connected with COM1 when RELAY1 pin is set low and disconnected when RELAY1 is high;
NO1 - Normally Open. Will be connected with COM1 when RELAY 1 pin is set high and disconnected when RELAY1 is low;
4 DIGITAL PINS TO CONTROL 4 RELAYS
RELAY1-RELAY4 pins could be connected directly with Arduino pin number of 7-4, so that four relays could be easily controlled by the Arduino
Specifications
Dimensions: 100mm x 67mm x 30mm
Operating Voltage: 4.75V~5.25V
Operating Current: 8~250 mA
Switching Voltage: 250VAC/30VDC
Switching Current: 15A/7A
Frequency: 1Hz
Switching Power: 70W
Relay Life: 100,000 Cycle
ESD contact discharge: ±4KV
ESD air discharge: ±8
Dimension: 68.7 x 53.5 x 30.8 mm
Operating Voltage: 4.75V~5.25V
Operating Current: 8~250 mA
Switching Voltage: 250VAC/30VDC
Switching Current: 15A/7A
Frequency: 1Hz
Switching Power: 70W
Relay Life: 100,000 Cycle
ESD contact discharge: ±4KV
ESD air discharge: ±8
Dimension: 68.7 x 53.5 x 30.8 mm
Item Weight
3 oz
