General Information
Manufacturer
Syba
Part Number
SY-CAB-F6
Product Type
Cable
Technical Information
Cable Type
VGA Cable
Connectors

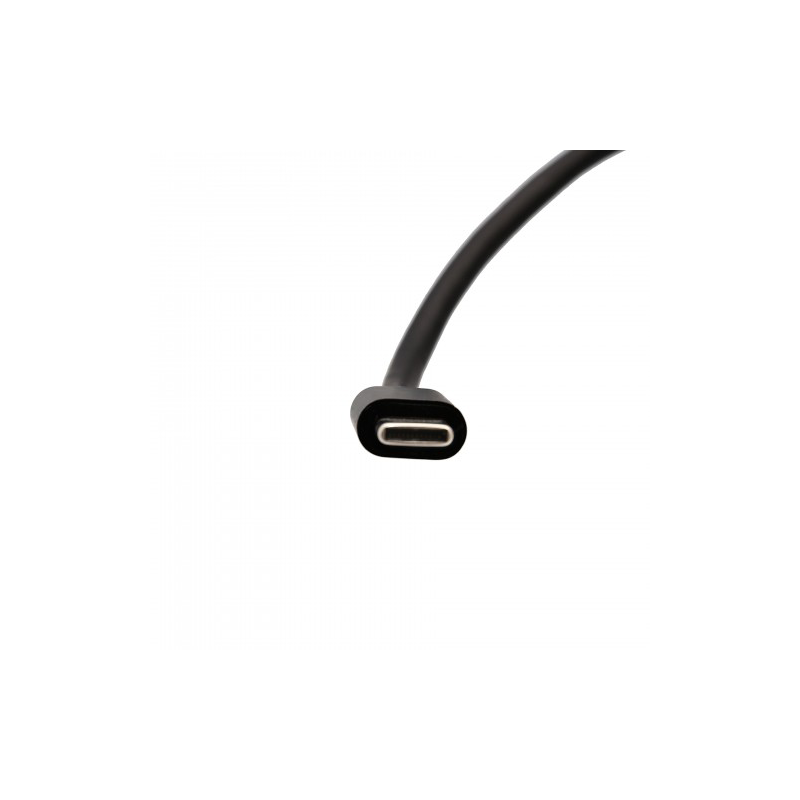

USB 3.1 Type C
Conductors
VGA
Color
Black
Features
Compliant with VGA specification
Compliant with Display Port specification version 1.2
Support 2 Main Link Lanes at either 1.62Gb/s or 2.7Gb/s link rate
Support analog RGB output for VGA with Triple 9-bit DAC up to 200Mhz pixel rate.
Up to 1920x1200@ 60Hz or 2048x1152@60Hz with reduced blanking.
Supports Enhanced Framing Mode
DAC connection detection supported
Compliant with Display Port specification version 1.2
Support 2 Main Link Lanes at either 1.62Gb/s or 2.7Gb/s link rate
Support analog RGB output for VGA with Triple 9-bit DAC up to 200Mhz pixel rate.
Up to 1920x1200@ 60Hz or 2048x1152@60Hz with reduced blanking.
Supports Enhanced Framing Mode
DAC connection detection supported
