General Information
Manufacturer

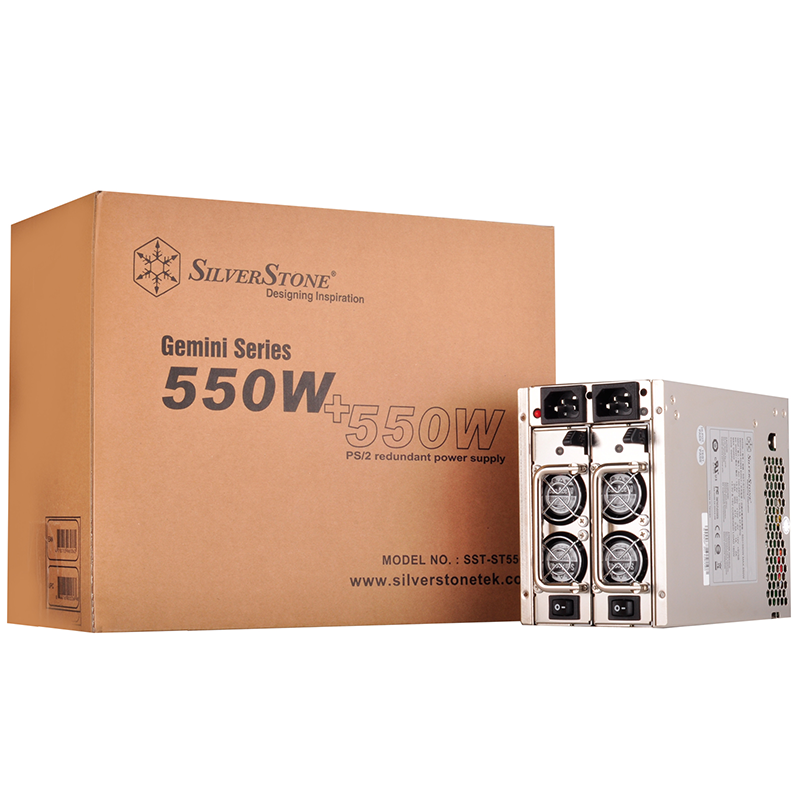

SilverStone Technology
Part Number
ST55GF
Product Type
Power Supply
Power Description
Input Voltage Type
AC
Input Voltage
110 VAC
Number of +12V Rails
Single
Output Voltage
+3.3V@24A
+5V@30A
+12V1@41A
+5VSB@2A
-12V@1A
+5V@30A
+12V1@41A
+5VSB@2A
-12V@1A
Physical Characteristics
Weight (Approximate)
10.47 lbs
Technical Information
Efficiency
68%.（Typical Loading）
Number of Fans
Dual 40 mm Fan x 2
Protection Type
Over Current Protection.
Over Power Protection.
Over Voltage Protection.
Short Circuit Protection.
Over Power Protection.
Over Voltage Protection.
Short Circuit Protection.
Interfaces Ports
Connectors
1 x 24-Pin Motherboard connector.（500mm）
1 x 8-Pin EPS12V connector.（500mm）
1 x 4-Pin ATX 12V connector.（500mm）
2 x Dual 4-Pin IDE & connectors.（500mm + 150mm）
2 x Dual 4-Pin IDE & 2 × Floppy Power connectors.（500mm + 150mm + 150mm）
2 x Dual SATA connector.（500mm / 150mm）
1 x 6-Pin PCIE connector.（550mm / 150mm）
1 x 8-Pin EPS12V connector.（500mm）
1 x 4-Pin ATX 12V connector.（500mm）
2 x Dual 4-Pin IDE & connectors.（500mm + 150mm）
2 x Dual 4-Pin IDE & 2 × Floppy Power connectors.（500mm + 150mm + 150mm）
2 x Dual SATA connector.（500mm / 150mm）
1 x 6-Pin PCIE connector.（550mm / 150mm）
