General Information
Manufacturer
Velleman
Part Number
HPG1
Product Type
Function Generator
Specifications
Features
DDS type generator (Direct Digital Synthesis)
DAC resolution: 10 bits
frequency range: from 1 Hz to 1,000,000 Hz (± 0.01%)
frequency steps: 1 Hz, 10 Hz, 100 Hz, 1 kHz and 10 kHz

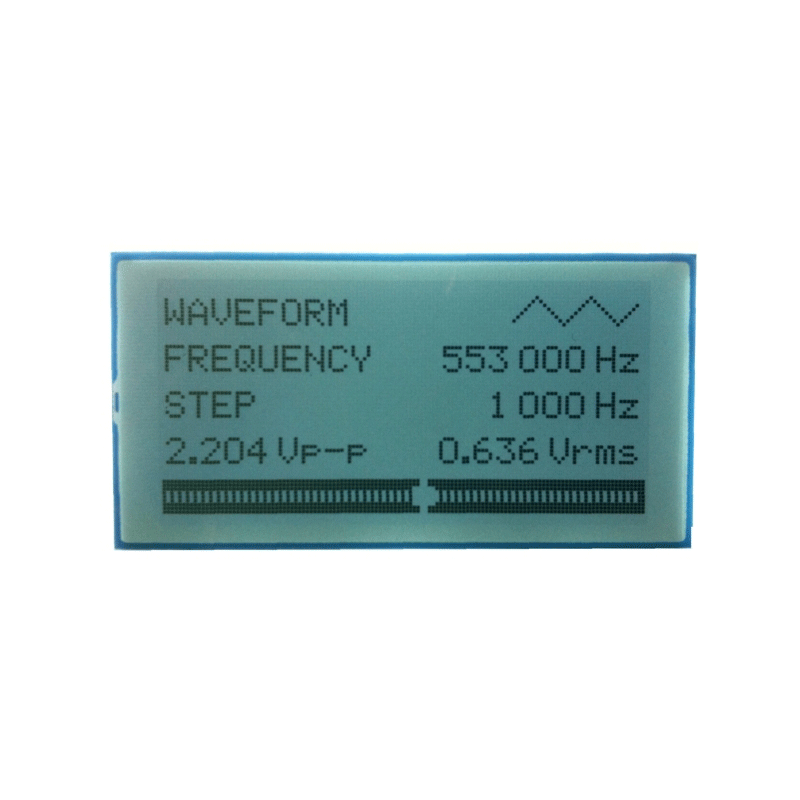

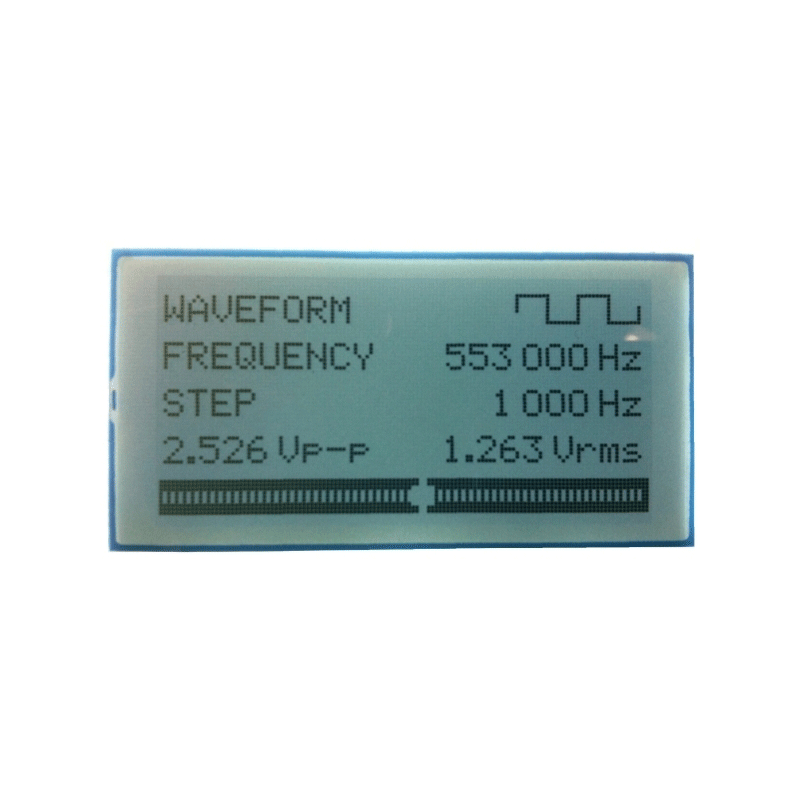

waveforms: sine, square and triangle

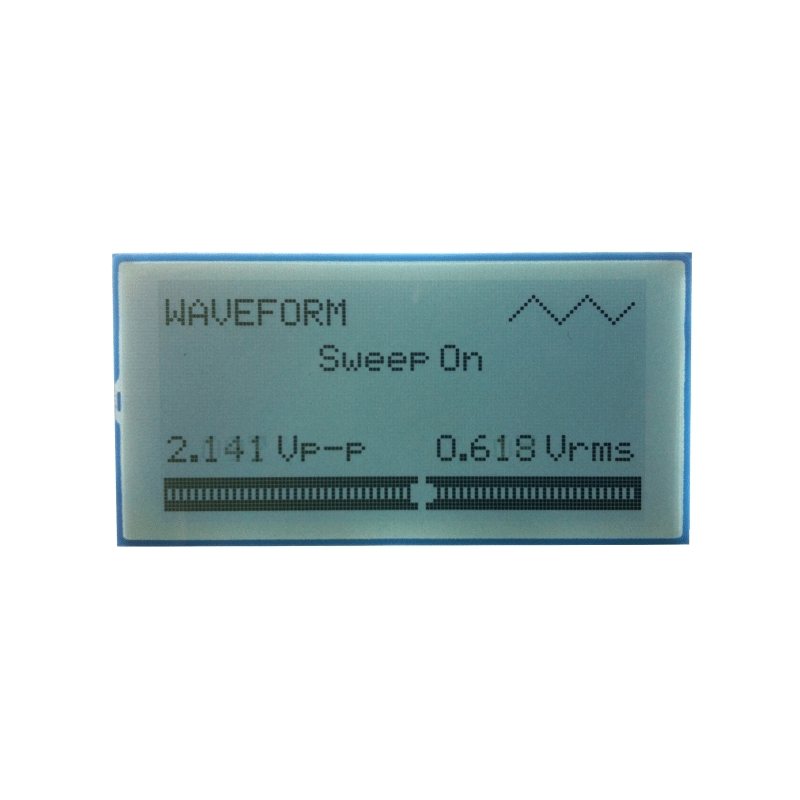

sweep function with bi-direction option
output voltage: max. 8 Vpp
real output level measurement: dBm / Vrms or Vpp readout (± 3 %)
typical sine wave distortion (THD): < 0.1% @ 0dB / 600 ohm
square wave rise/fall time: typ. 0.2 µs
output impedance: 50 ohm

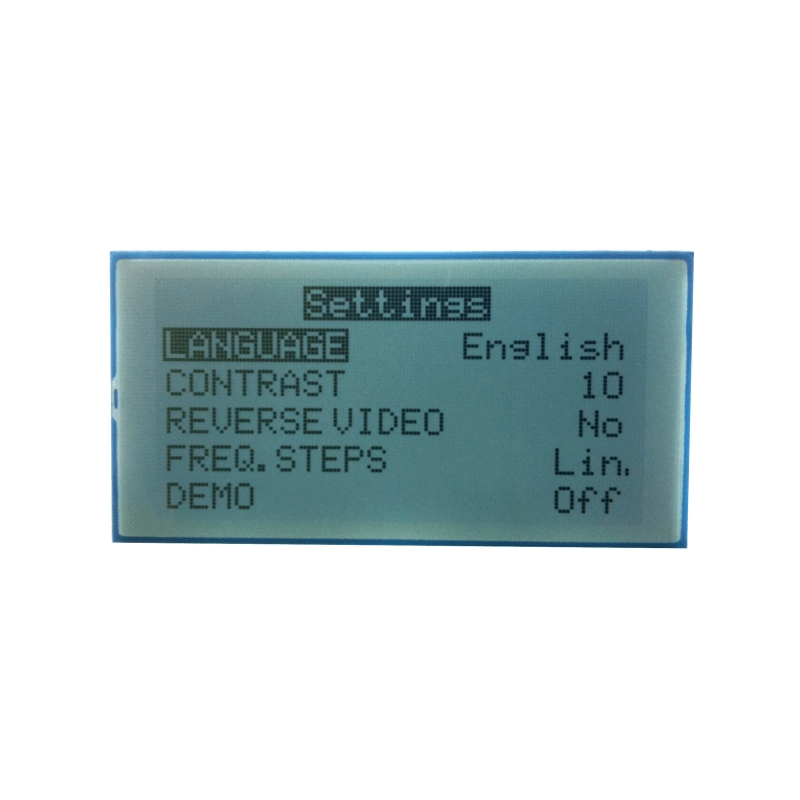

multi-language menu (Eng / Fre / Dut / Ge / Es )
white LED backlight
charging power supply: 9 Vdc/200 mA
operates on NiMH rechargeable battery pack (included)
DAC resolution: 10 bits
frequency range: from 1 Hz to 1,000,000 Hz (± 0.01%)
frequency steps: 1 Hz, 10 Hz, 100 Hz, 1 kHz and 10 kHz
waveforms: sine, square and triangle
sweep function with bi-direction option
output voltage: max. 8 Vpp
real output level measurement: dBm / Vrms or Vpp readout (± 3 %)
typical sine wave distortion (THD): < 0.1% @ 0dB / 600 ohm
square wave rise/fall time: typ. 0.2 µs
output impedance: 50 ohm
multi-language menu (Eng / Fre / Dut / Ge / Es )
white LED backlight
charging power supply: 9 Vdc/200 mA
operates on NiMH rechargeable battery pack (included)
Miscellaneous
Item Weight
1.2 oz
