General Information
Manufacturer
Syba
Part Number
SY-ADA33008
Product Type
Cable
Technical Information
Cable Type
DisplayPort
Cable Length
6"

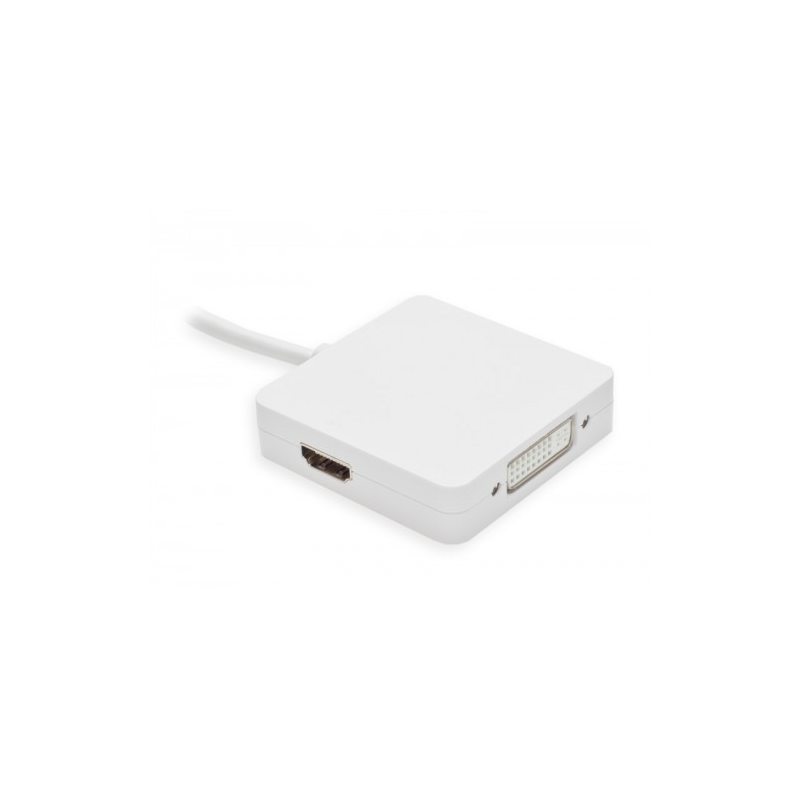

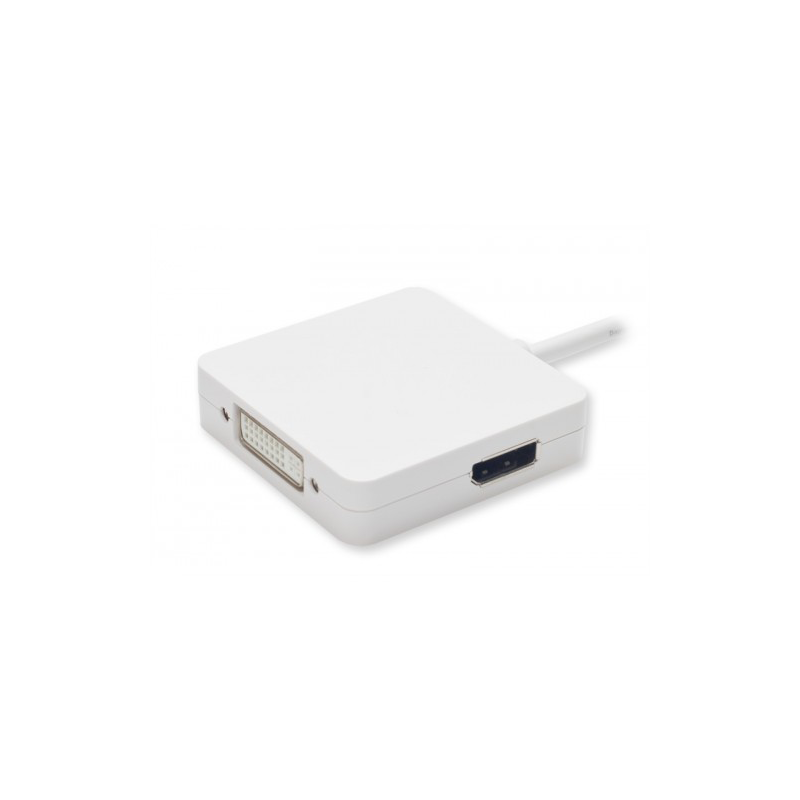

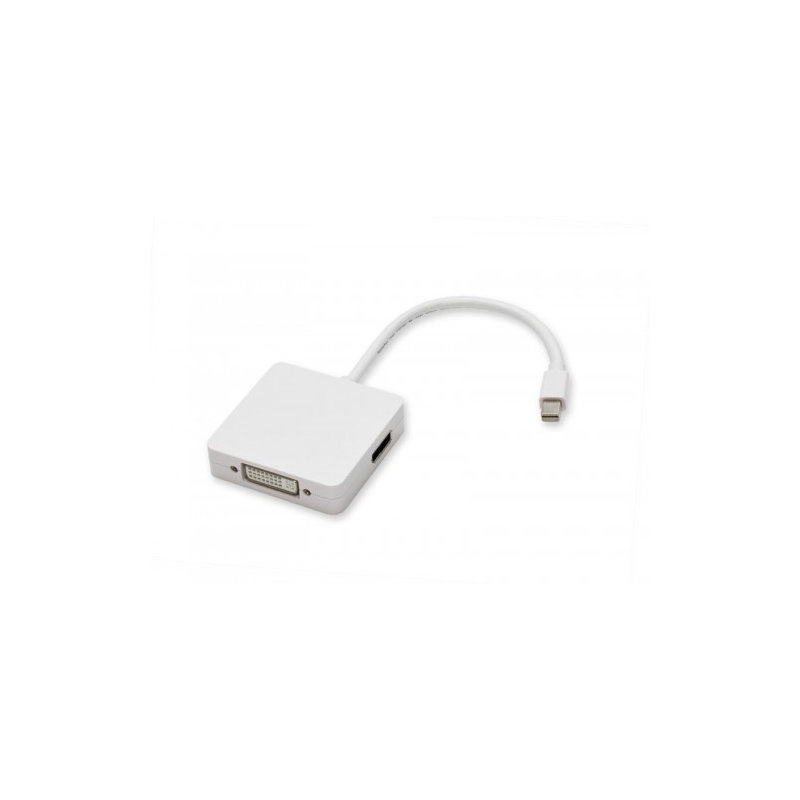

Connectors
Mini DisplayPort Male 20pin
Conductors
HDMI Female 19Pin, DVI Female (24+5), and DisplayPort 20Pin
Color
White
Features
nput Interface: Mini DisplayPort Male 20pin
Output Interface: HDMI Female 19Pin, DVI Female (24+5), and DisplayPort 20Pin
MINI DISPLAYPORT MALE TO DVI (24+5) FEMALESupports Signal Transmission From DisplayPort to DVIDVI Resolution: 1920 x 1080PDVI 225mHZ / 2.25Gbps Per Channel / 6.75Gbps All ChannelsSupports One-way, Single-channel, Four-wire Connections
MINI DISPLAYPORT MALE TO HDMI FEMALESupports Mini DisplayPort 1.1a Input and HDMI1.3b OutputSupports HDMI Highest Video Resolution 1080pSupports HDMI 225MHz / 2.25Gbps Per Channel (6.75Gbps All Channels) BandwidthSupports HDMI 12bit Per Channel (36bit All Channels) Deep ColorSupports Uncompressed Audio Such as LPCM
MINI DISPLAYPORT MALE TO DISPLAYPORT FEMALEDisplayport Resolution: 1920 x 1200
Input Video Signal:5 Volts p-p (TTL)
HDMI/DVI Maximum Single Link Range: 1920 x 1080P @ 60Hz
DisplayPort Maximum Single Link Range: 1920 x 1200 @ 60Hz
HDMI/DVI Video Amplifier Bandwidth: 2.25Gbps / 225MHz
DisplayPort Video Amplifier Bandwidth: 2.7Gbps / 270MHz
HDMI/DVI Resolution:480i, 480p, 576i, 576p, 720p, 1080i, 1080p
HDMI/DVI Resolution:1280*1024, 1360*768, 1920*1080, 1920*1200
Operating Temperature: 0 to +70
Operating Humidity: 10% to 85 % RH (Non Condensing )
Adapter Size: 2.25" x 2.25" x 0.5"
Attached Cable Length: 6"
Output Interface: HDMI Female 19Pin, DVI Female (24+5), and DisplayPort 20Pin
MINI DISPLAYPORT MALE TO DVI (24+5) FEMALESupports Signal Transmission From DisplayPort to DVIDVI Resolution: 1920 x 1080PDVI 225mHZ / 2.25Gbps Per Channel / 6.75Gbps All ChannelsSupports One-way, Single-channel, Four-wire Connections
MINI DISPLAYPORT MALE TO HDMI FEMALESupports Mini DisplayPort 1.1a Input and HDMI1.3b OutputSupports HDMI Highest Video Resolution 1080pSupports HDMI 225MHz / 2.25Gbps Per Channel (6.75Gbps All Channels) BandwidthSupports HDMI 12bit Per Channel (36bit All Channels) Deep ColorSupports Uncompressed Audio Such as LPCM
MINI DISPLAYPORT MALE TO DISPLAYPORT FEMALEDisplayport Resolution: 1920 x 1200
Input Video Signal:5 Volts p-p (TTL)
HDMI/DVI Maximum Single Link Range: 1920 x 1080P @ 60Hz
DisplayPort Maximum Single Link Range: 1920 x 1200 @ 60Hz
HDMI/DVI Video Amplifier Bandwidth: 2.25Gbps / 225MHz
DisplayPort Video Amplifier Bandwidth: 2.7Gbps / 270MHz
HDMI/DVI Resolution:480i, 480p, 576i, 576p, 720p, 1080i, 1080p
HDMI/DVI Resolution:1280*1024, 1360*768, 1920*1080, 1920*1200
Operating Temperature: 0 to +70
Operating Humidity: 10% to 85 % RH (Non Condensing )
Adapter Size: 2.25" x 2.25" x 0.5"
Attached Cable Length: 6"
