General Information
Manufacturer
Bytecc
Part Number
MIDP-VGA005
Product Type
Adapter
Technical Information
Adapter Type

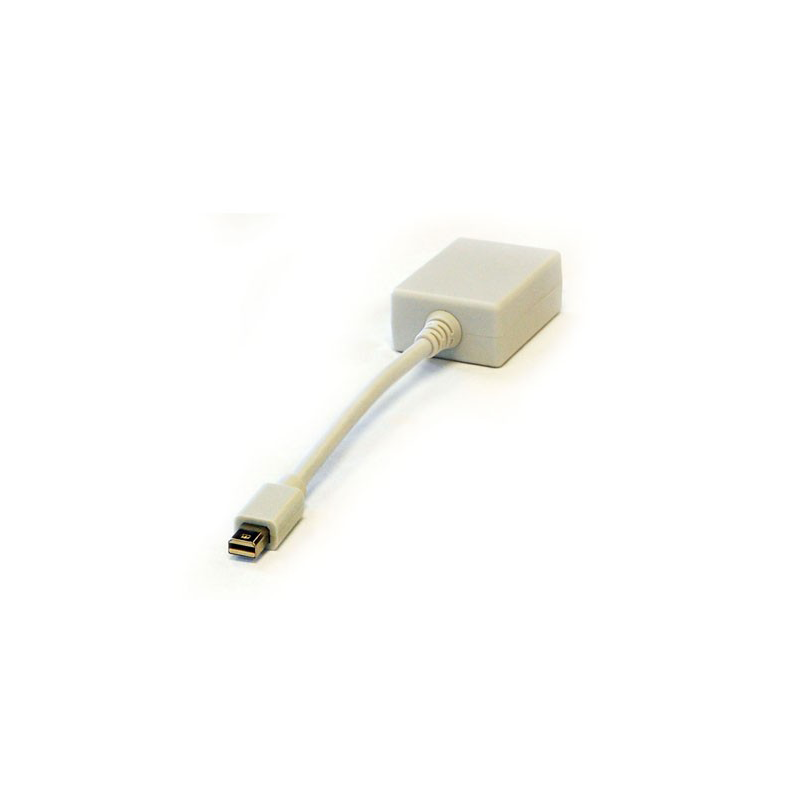

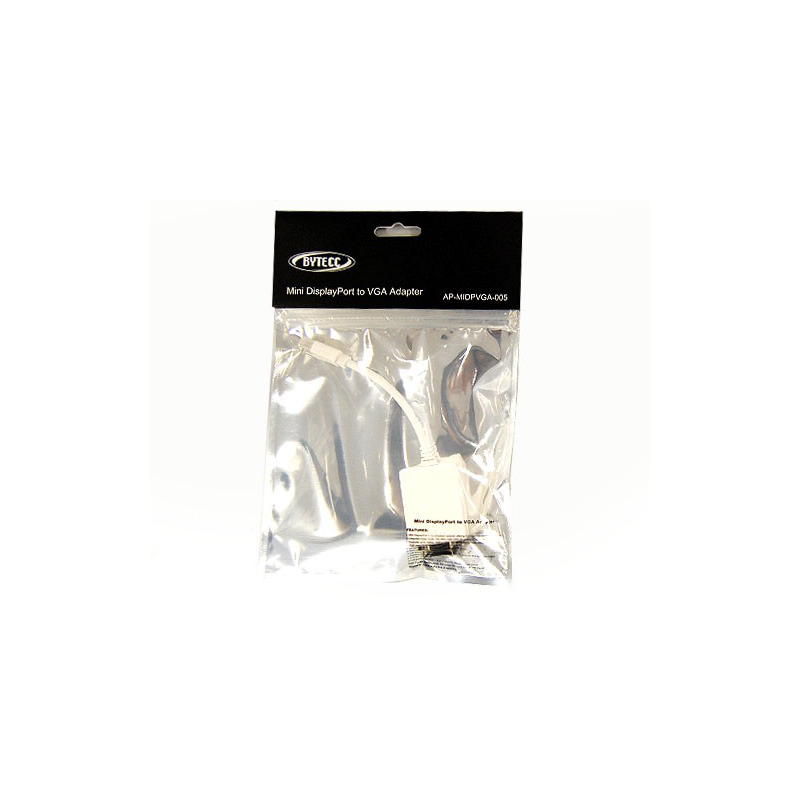

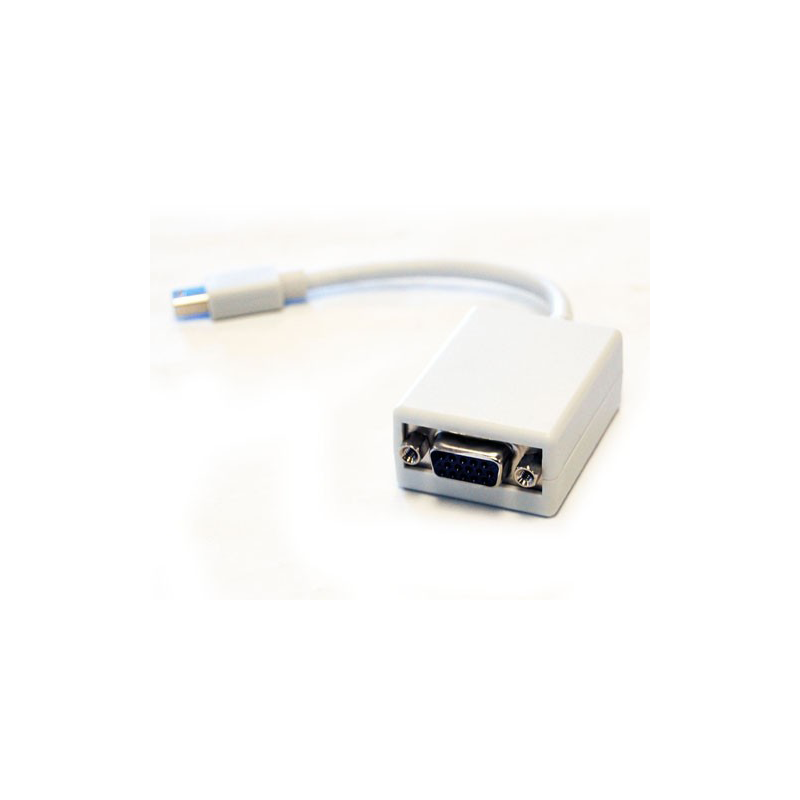

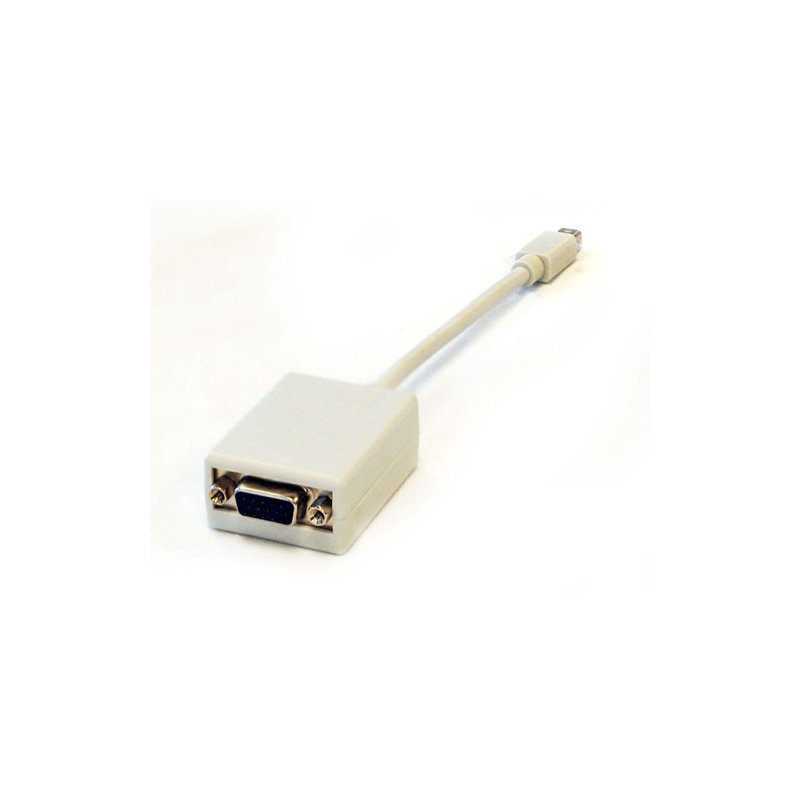

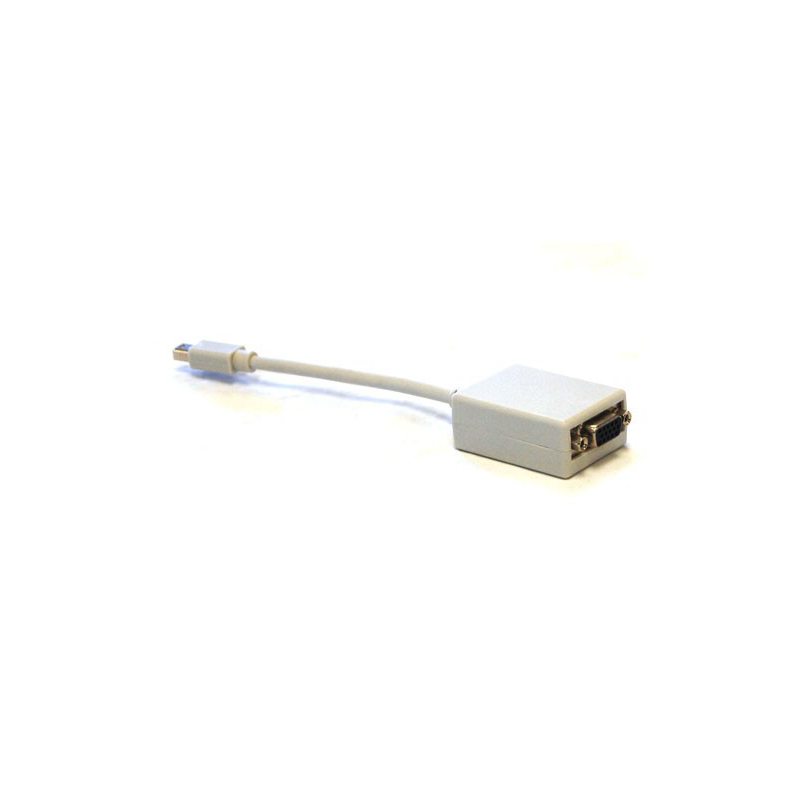

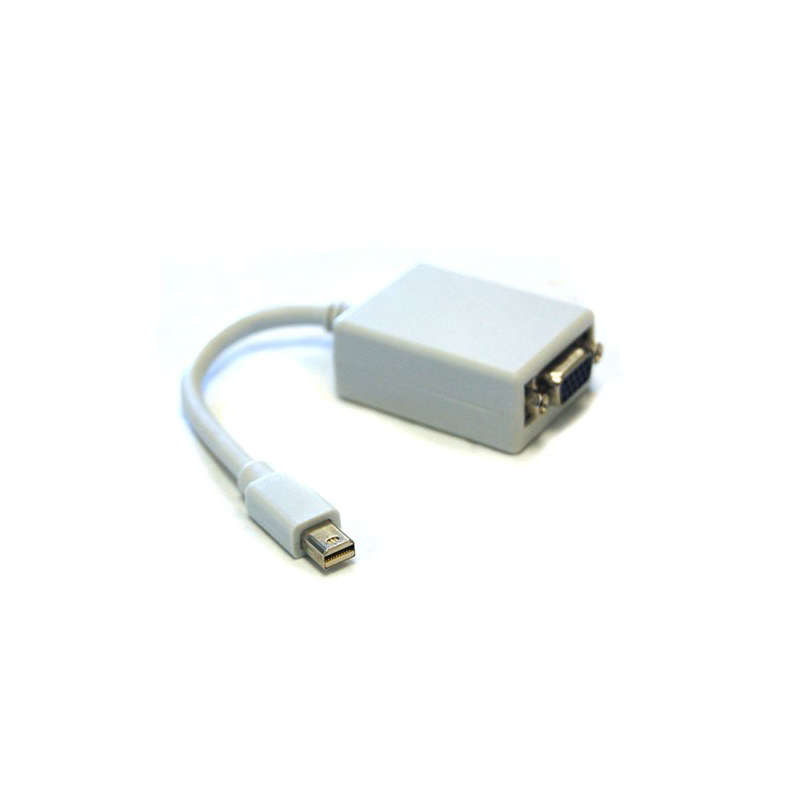

Mini DisplayPort to VGA 0.5ft (6") Adapter
Connector on First End
VGA
Connector on Second End
Mini Displayport
Color
White
Features
Mini displayport 1.1a compliant receiver offering 5.4Gbps bandwidth over 2 lanes
Integrated triple 10-bit, 162 MHz video DAC for analog VGA signal output
Supports up to 1080p, 1920x1200 reduced blanking video resolution
EDID pass-through from PC source to display
Spread Spectrum(de-spreading) for EMI reduction
Automatic sink detection
Low power standby mode operation initiated based on sink detection status
Powered from Mini displayport source
3.3V IO 1.2V core
Low power operation - Active 400mW, standby mode 15mW
5" length in between plugs
Integrated triple 10-bit, 162 MHz video DAC for analog VGA signal output
Supports up to 1080p, 1920x1200 reduced blanking video resolution
EDID pass-through from PC source to display
Spread Spectrum(de-spreading) for EMI reduction
Automatic sink detection
Low power standby mode operation initiated based on sink detection status
Powered from Mini displayport source
3.3V IO 1.2V core
Low power operation - Active 400mW, standby mode 15mW
5" length in between plugs
