General Information
Manufacturer
Syba
Part Number
SY-ADA31049
Product Type
HDMI Converter
Specifications
Color
Black
Material
Metal
Size
L 2.40 × W 5.90 × H 7.24 in
Weight (Approximate)
0.60 lb
Miscellaneous
What's Included

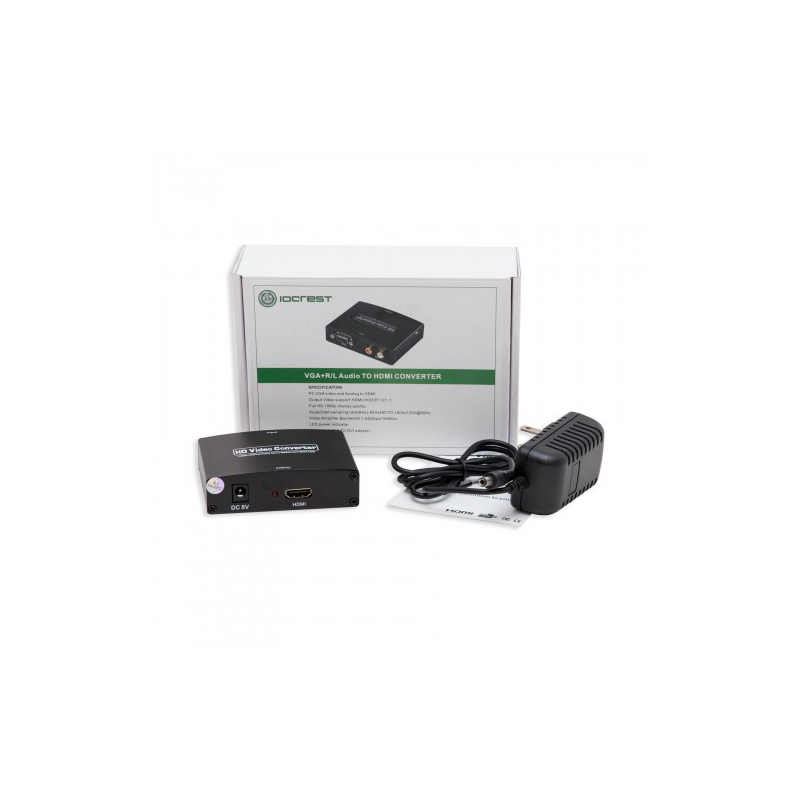

VGA DB15 + Stereo RCA to HDMI 1.3 converter box, Universal AC Adapter (5V, 1A) 37" Cable Length, User Manual
Features
Installs in seconds, no setup required.
Convert PC’s VGA video and R/L audio into complete HDMI 1.3a signal

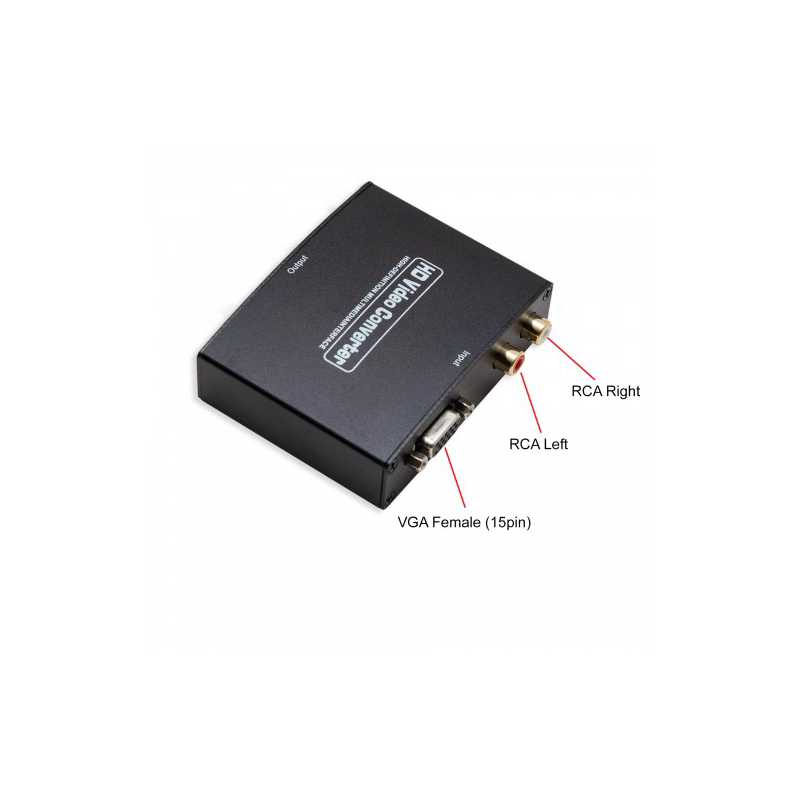

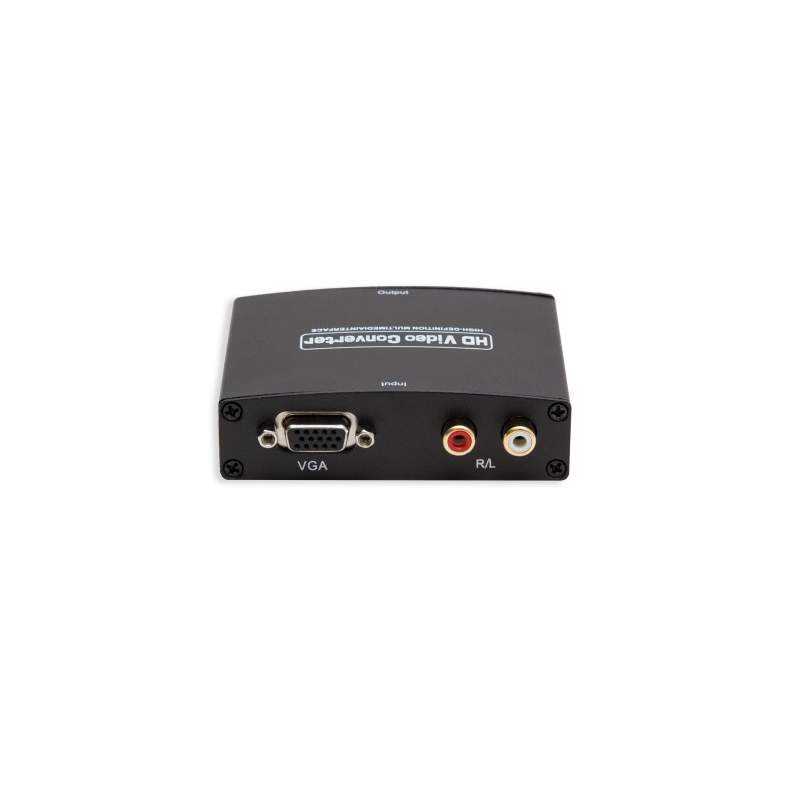

Input: VGA Female (15pin) RCA Left RCA Right

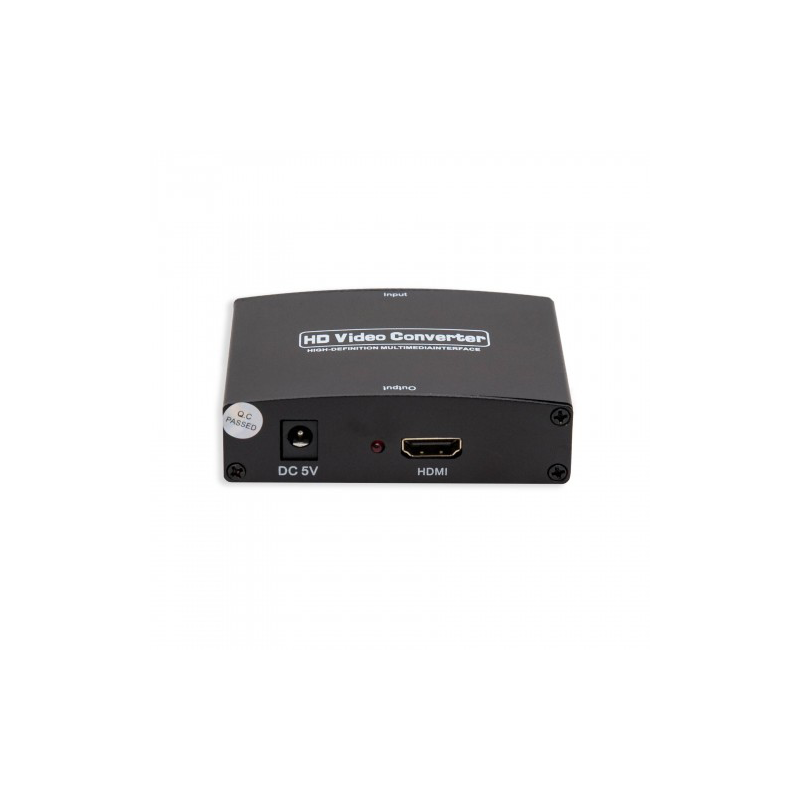

Output: HDMI 1.3 Female HDCP1.0/1.1
Connector: DC 5V Input Jack
Operating Frequency: Up to 165MHz
Resolutions (HDTV): Interlaced (50, 60Hz): 480i, 576i, 1080i Progressive (50, 60Hz): 480p, 576p, 720p, 1080p
VGA Input: 640x480 60Hz 72Hz 75Hz 800x600 60Hz 72Hz 75Hz 1024x768 60Hz 70Hz 75Hz 1280x1024 60Hz 1600x1200 60Hz
Supports 165MHz/1.65Gbps per channel (6.75Gbps all channel) bandwidth.
Supports 8bit per channel (24bit all channel) deep color.
Size (WxDxH): 87.5mm x 65.5mm x 25mm
Housing: Metal
Color: Black
Convert PC’s VGA video and R/L audio into complete HDMI 1.3a signal
Input: VGA Female (15pin) RCA Left RCA Right
Output: HDMI 1.3 Female HDCP1.0/1.1
Connector: DC 5V Input Jack
Operating Frequency: Up to 165MHz
Resolutions (HDTV): Interlaced (50, 60Hz): 480i, 576i, 1080i Progressive (50, 60Hz): 480p, 576p, 720p, 1080p
VGA Input: 640x480 60Hz 72Hz 75Hz 800x600 60Hz 72Hz 75Hz 1024x768 60Hz 70Hz 75Hz 1280x1024 60Hz 1600x1200 60Hz
Supports 165MHz/1.65Gbps per channel (6.75Gbps all channel) bandwidth.
Supports 8bit per channel (24bit all channel) deep color.
Size (WxDxH): 87.5mm x 65.5mm x 25mm
Housing: Metal
Color: Black
