General Information
Manufacturer
Syba
Part Number
SY-ADA31050
Product Type
HDMI Converter
Specifications
Color
Black
Size
L 2.40 × W 5.90 × H 7.24 in
Weight (Approximate)
0.65 lb
Miscellaneous
What's Included

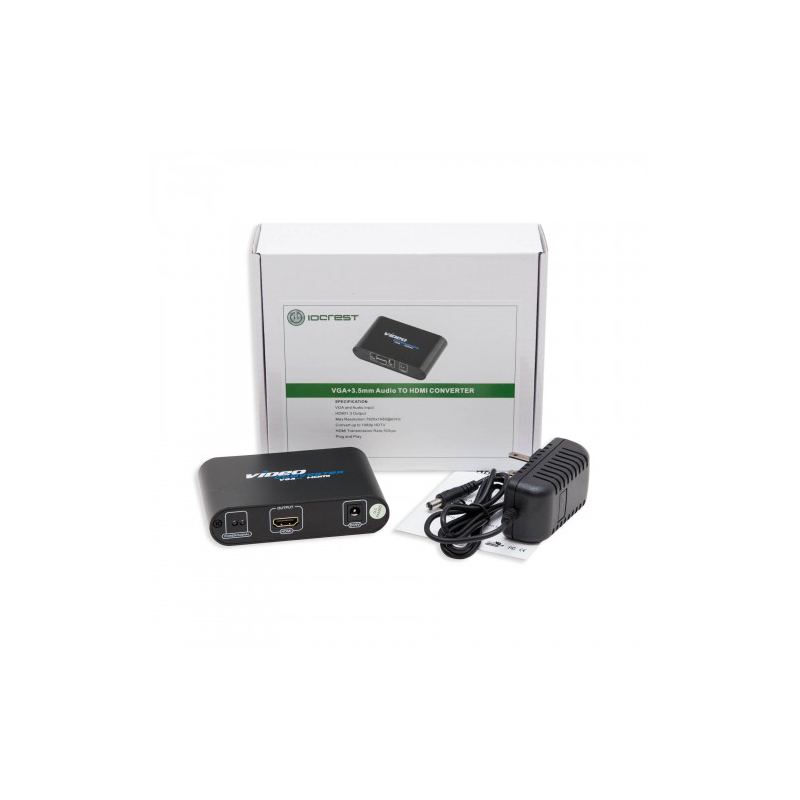

VGA + 3.5mm Audio to HDMI Converter, Universal AC Adapter (5V, 1A) 37" Cable Length, User Manual
Features
Convert VGA video and R/L audio into HDMI
Extended transmission distance and improve transmission signal
Metal casing design and shielding without signal interference
Resolutions (HDTV): Interlaced (50, 60Hz): 480i, 576i, 1080i Progressive (50, 60Hz): 480p, 576p, 720p, 1080p

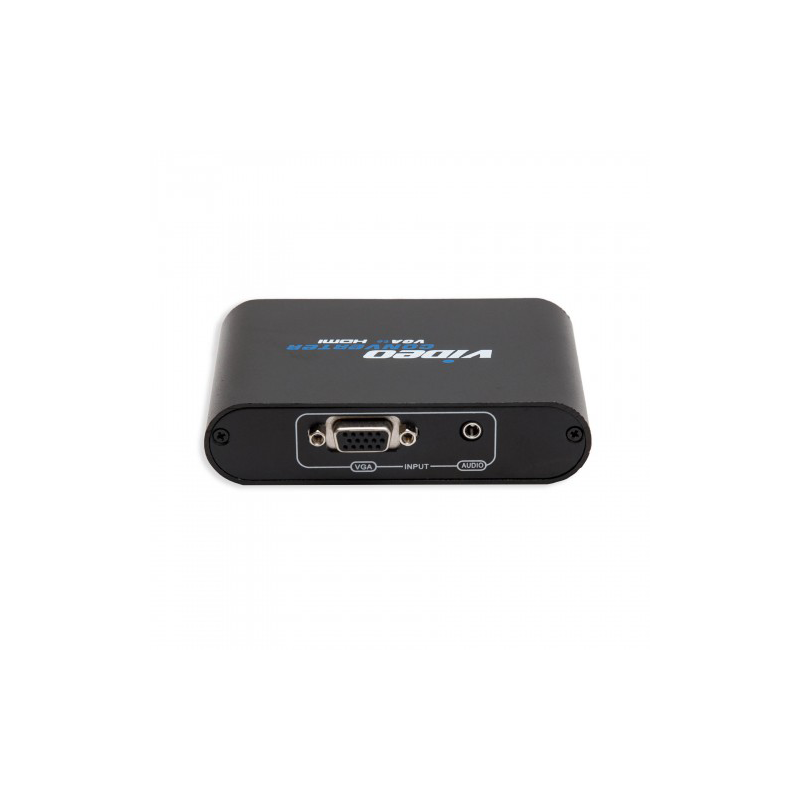

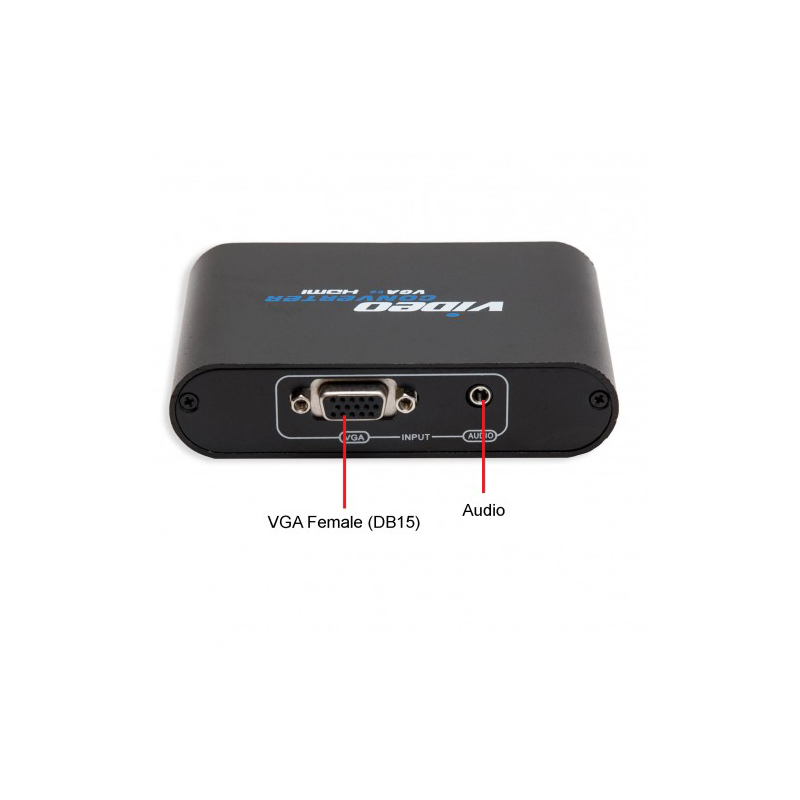

Input: VGA Female (DB15) 3.5mm Line-in Jack
Output: HDMI Female + HDCP1.0/1.1
Connector: DC 5V Power Jack
VGA Resolutions: 640x480 60Hz 72Hz 75Hz 800x600 60Hz 72Hz 75Hz 1024x768 60Hz 72Hz 75Hz 1280x1024 60Hz 1600x1200 60Hz

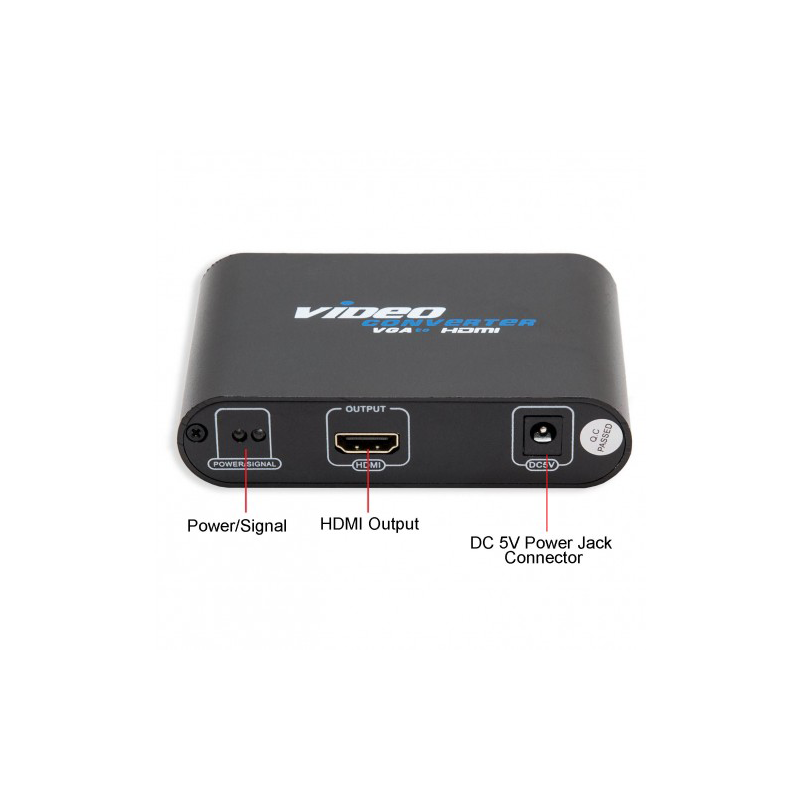

LED Indicators: Power Signal
Video Amplifier Bandwidth: 1.65Gpbs/165MHz
Regulatory Approvals: CD, FCC, ROHS
Size (LxWxH): 4.25" x 3" x x 1" (88mm x 68mm x 25.5mm)
Extended transmission distance and improve transmission signal
Metal casing design and shielding without signal interference
Resolutions (HDTV): Interlaced (50, 60Hz): 480i, 576i, 1080i Progressive (50, 60Hz): 480p, 576p, 720p, 1080p
Input: VGA Female (DB15) 3.5mm Line-in Jack
Output: HDMI Female + HDCP1.0/1.1
Connector: DC 5V Power Jack
VGA Resolutions: 640x480 60Hz 72Hz 75Hz 800x600 60Hz 72Hz 75Hz 1024x768 60Hz 72Hz 75Hz 1280x1024 60Hz 1600x1200 60Hz
LED Indicators: Power Signal
Video Amplifier Bandwidth: 1.65Gpbs/165MHz
Regulatory Approvals: CD, FCC, ROHS
Size (LxWxH): 4.25" x 3" x x 1" (88mm x 68mm x 25.5mm)
