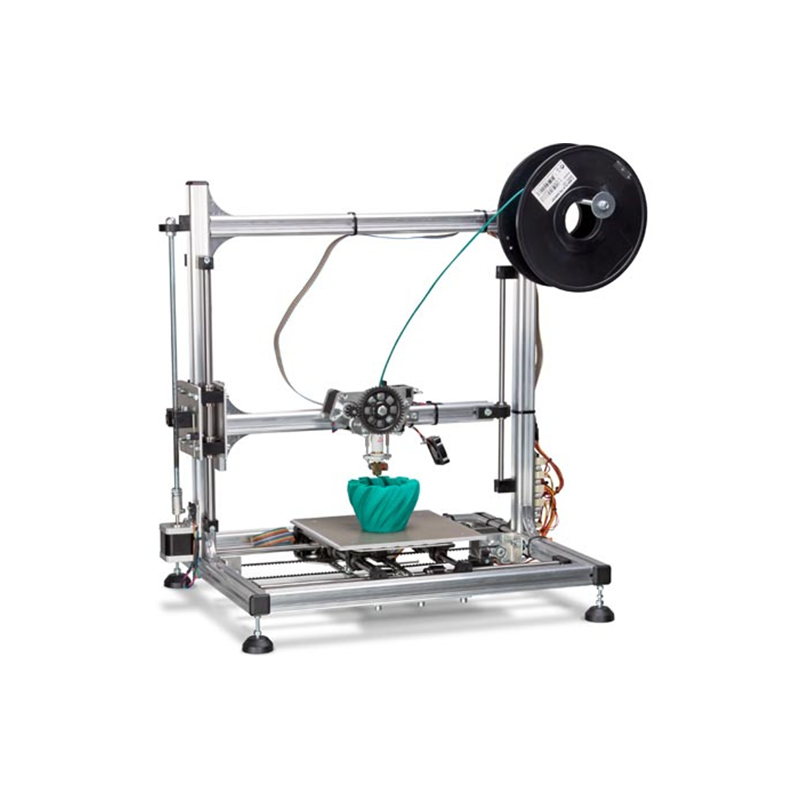

General Information
Manufacturer
Velleman
Part Number
K8200
Product Type
DIY Kit - 3D Printer
Miscellaneous
Skill Level
Master
Required Skills
Soldering
Features
Variable 3D Printing Speed - Offers more control to print w/ a wide variety of materials
Do-It-Yourself Kit - Learn the fundamentals of 3D printing while building it yourself
Precision Printing - Even when printing at higher speeds
Customization - Customize with Velleman’s many available upgrades
Anti-Warping - Includes a heated print bed to protect printed parts from warping
Open Source -Velleman uses Repetier-Host, an open source software to drive the K8200
Do-It-Yourself Kit - Learn the fundamentals of 3D printing while building it yourself
Precision Printing - Even when printing at higher speeds
Customization - Customize with Velleman’s many available upgrades
Anti-Warping - Includes a heated print bed to protect printed parts from warping
Open Source -Velleman uses Repetier-Host, an open source software to drive the K8200
Specifications
Linear ball bearings: 8 and 10 mm (0.314" and 0.393")
Technology: FFF (Fused Filament Fabrication) for PLA and ABS
Power supply: 15 Vdc / 6,6A max.
Connection: FTDI USB 2.0 to Serial
Dimensions of printable area: 20 x 20 x 20cm / 7.87 x 7.87 x 7.87"
Typical printing speed: 120 mm/s
heated bed: max. temperature 60°C
Maximum print speed: 150 to 300 mm/s (depending on the object to be printed)
Extrusion nozzle: 0.5 mm
Extrusion thermistor: NTC 100K
Extruded aluminum profiles: 27.5 mm / 1.08" wide
Movement: 4 NEMA 17 stepper motors
Resolution:
Nominal mechanical resolution:
X and Y: 0.015 mm / 590.55 µin (smallest step the printing plate can move in the X and Y direction)
Z: 0.781 µm / 30.74 µin(smallest step the printing plate can move in the Z direction)
Nominal printing resolution:
Wall thickness (X,Y): 0.5 mm / 0.019"
Layer thickness (Z): 0.20 - 0.25 mm / 0.0078 - 0.0098"
Dimensions:
Width: 50cm / 19.7"
Depth: 42cm / 16.5"
Height: 62cm / 24.4"
Technology: FFF (Fused Filament Fabrication) for PLA and ABS
Power supply: 15 Vdc / 6,6A max.
Connection: FTDI USB 2.0 to Serial
Dimensions of printable area: 20 x 20 x 20cm / 7.87 x 7.87 x 7.87"
Typical printing speed: 120 mm/s
heated bed: max. temperature 60°C
Maximum print speed: 150 to 300 mm/s (depending on the object to be printed)
Extrusion nozzle: 0.5 mm
Extrusion thermistor: NTC 100K
Extruded aluminum profiles: 27.5 mm / 1.08" wide
Movement: 4 NEMA 17 stepper motors
Resolution:
Nominal mechanical resolution:
X and Y: 0.015 mm / 590.55 µin (smallest step the printing plate can move in the X and Y direction)
Z: 0.781 µm / 30.74 µin(smallest step the printing plate can move in the Z direction)
Nominal printing resolution:
Wall thickness (X,Y): 0.5 mm / 0.019"
Layer thickness (Z): 0.20 - 0.25 mm / 0.0078 - 0.0098"
Dimensions:
Width: 50cm / 19.7"
Depth: 42cm / 16.5"
Height: 62cm / 24.4"
Item Weight
19.9 lbs
